How to Replace a Whirlpool Cabrio Thermal Fuse: Step-by-Step DIY Repair Guide

When your Whirlpool Cabrio dryer suddenly stops heating, it can bring your entire laundry routine to a halt. The drum still spins, the cycle still runs, but your clothes come out cold and damp. In many cases, this frustrating problem comes down to one small but critical safety component: the thermal fuse.

The good news? Replacing a Whirlpool Cabrio thermal fuse is one of the most straightforward and cost-effective DIY dryer repairs you can perform at home. With basic tools, careful attention to safety, and the right step-by-step guidance, you can restore proper heat to your dryer without calling a technician or spending hundreds on service fees.

This in-depth DIY repair guide walks you through everything you need to know from diagnosing a blown thermal fuse to replacing it correctly and preventing future failures. Whether you’re an experienced DIYer or tackling your first appliance repair, this guide gives you the confidence to fix your dryer the right way.

What Does the Thermal Fuse Do in a Whirlpool Cabrio Dryer?

The thermal fuse in a Whirlpool Cabrio dryer is a safety device designed to protect the appliance from overheating and potential fire hazards. To better understand its role, here’s a breakdown of how it functions and why it’s so important:

• Safety Mechanism: It's essentially a one-time safety switch.

• Temperature Monitoring: It monitors the internal temperature of the dryer's exhaust system, typically mounted on the blower housing.

• Automatic Shut-off: If the temperature exceeds a safe threshold (due to a clogged vent, malfunctioning heating element, or faulty cycling thermostat), the fuse will blow or break the circuit, instantly cutting power to the heating element (and often the entire dryer operation).

• Non-Resettable: A blown thermal fuse cannot be reset; it must be replaced.

• Diagnostic Tool: Its failure often indicates an underlying problem, most commonly restricted airflow from a clogged vent, which must be addressed to prevent the new fuse from blowing again.

By interrupting the power, the thermal fuse prevents components from reaching temperatures that could ignite lint buildup or damage other parts of the dryer.

Looking for dependable appliance repair solutions you can count on? Shop at HnK Parts for home and kitchen appliance parts built for reliable performance and lasting durability. We stock an extensive range of parts for refrigerators, ovens, washers, dryers, dishwashers, and more—carefully selected to ensure compatibility and efficient operation. Backed by competitive pricing, quick shipping, and responsive customer support.

Before we dive in and find out how to replace the thermal fuse in your Whirlpool Cabrio dryer, watch this step-by-step video guide for a clear visual walkthrough:

Signs Your Whirlpool Cabrio Thermal Fuse Is Blown

A blown thermal fuse in your Whirlpool Cabrio dryer can cause noticeable performance issues. Since the fuse is designed to shut down the dryer when overheating occurs, its failure typically results in one of the following symptoms:

Key Indicators of a Blown Thermal Fuse

• Dryer Won't Start at All: Pressing the start button results in no action—no motor humming and no drum movement. The control panel lights may still be on, but the dryer remains completely unresponsive to the start command. A failed Whirlpool Cabrio thermal fuse often interrupts the electrical pathway required for operation.

• No Heat, But Drum Still Spins: In some models, the drum tumbles normally while the heating element never engages, leaving clothes damp after a full cycle. This is a classic sign that the Whirlpool Cabrio dryer thermal fuse has tripped to prevent overheating.

• Dryer Shuts Off Mid-Cycle: The dryer may run for a short time and then stop abruptly, especially if the internal temperature quickly exceeds safe limits due to restricted airflow.

• No Continuity (Diagnostic Test): The most definitive test involves using a multimeter to check the fuse for electrical continuity. If the meter shows infinite resistance (no continuity) across the two terminals, the fuse is blown and needs replacement.

Keep in mind that a blown fuse is usually a symptom of an underlying issue—most commonly a clogged vent that traps heat inside the dryer. Addressing the root cause is essential to prevent another failure after your Whirlpool Cabrio dryer thermal fuse replacement.

Check out the most common dryer problems and how to fix them, which covers frequent dryer issues, their causes, troubleshooting methods, and effective repair solutions to restore drying performance.

How to Replace a Whirlpool Cabrio Thermal Fuse Step-by-Step

Replacing a Whirlpool Cabrio thermal fuse is a straightforward DIY repair. Follow these steps carefully to ensure a safe and successful replacement:

Safety First

• Unplug the dryer: Before starting any maintenance, always unplug the appliance from the power source to prevent electrical shock.

• Clean the vents: Overheating caused by blocked airflow is the leading reason fuses fail. After you replace the thermal fuse in a Whirlpool Cabrio dryer, thoroughly clean the exhaust system—including the flexible hose and the exterior duct—to protect the new component.

Tools and Parts Needed

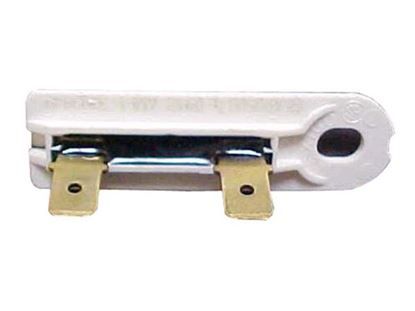

• New Thermal Fuse: Choose an OEM replacement designed for your specific model. Common options include the Whirlpool 279816 thermal cut-off kit or the WP3392519 thermal fuse—both trusted Whirlpool parts.

• Nut Drivers: You will likely need 1/4-inch and 5/16-inch nut drivers.

• Screwdriver: A Phillips-head screwdriver is often needed.

• Multimeter (Optional): You can use a multimeter to test the old fuse for continuity to confirm it is blown.

Step-by-Step Instructions

• Move the dryer: Pull the dryer away from the wall to access the rear panel and disconnect the exhaust vent hose.

• Remove the back panel: Use a 1/4-inch or 5/16-inch nut driver to remove all the screws securing the rear access panel and set the panel aside.

• Locate the thermal fuse: The typical Whirlpool Cabrio dryer thermal fuse location is on the blower housing or along the exhaust duct assembly. Identifying this component correctly ensures a faster repair.

• Disconnect the wires: Pull the two wires off the connection spades on top of the old thermal fuse. The wire positions are not important, so you don't need to mark them.

• Remove the old fuse: Use a 1/4-inch nut driver to remove the single mounting screw that secures the thermal fuse to the blower housing. The fuse may have a small tab on one end, allowing it to pivot out.

• Install the new fuse: Position the new thermal fuse and secure it in place with the mounting screw.

• Reconnect the wires: Push the two wires onto the connection spades of the new thermal fuse, ensuring a secure connection.

• Reattach the back panel: Position the back panel back onto the dryer cabinet, align the screw holes, and reinsert and firmly tighten the mounting screws.

• Restore power and test: Reconnect the vent, plug the dryer back in, and run a test cycle to confirm the repair was successful. A properly completed Whirlpool Cabrio dryer thermal fuse replacement should restore normal heating and operation.

When to Call a Professional for Whirlpool Cabrio Thermal Fuse Repair

Although replacing a thermal fuse is often a manageable DIY repair, some situations require professional attention. If the issue goes beyond a simple blown fuse, attempting further repairs without proper expertise can lead to additional damage or safety risks. Persistent overheating, electrical concerns, or repeated part failures usually indicate a deeper underlying problem. In such cases, a qualified technician can accurately diagnose and resolve the root cause.

You should consider calling a professional if:

• The thermal fuse blows again shortly after replacement

• The dryer emits a burning smell or excessive heat

• The unit shuts off randomly during operation

• You notice damaged wiring or loose electrical connections

• You are uncomfortable handling electrical appliance repairs

Summary: Restoring Your Whirlpool Cabrio Dryer After Thermal Fuse Replacement

Restoring your Whirlpool Cabrio dryer after a thermal fuse replacement involves more than simply installing the new component—it requires confirming that airflow, heat distribution, and system performance are fully optimized. Taking a few extra minutes to inspect the dryer’s internal and external ventilation paths helps prevent repeat failures and supports long-term appliance reliability. By completing these final checks, you ensure the repair is both successful and durable, reducing the likelihood of overheating and extending the life of critical Whirlpool parts.

Key Takeaway Points

• Maintaining a lint-free internal cabinet helps reduce fire risk and supports efficient airflow around the motor and blower housing.

• Ensuring the exhaust vent path is completely clear before reconnecting the dryer prevents heat buildup that could cause the thermal fuse to blow again.

• Running a short high-heat test cycle confirms the dryer is producing consistent warmth and operating normally after the repair.

• Checking the exterior vent flap for strong airflow verifies that hot air is exiting properly and that no hidden blockages remain.

• Monitoring the control panel for airflow-related error codes—such as “AF” or “F01”—helps identify unresolved ventilation restrictions before they lead to additional component damage.

FAQs

Where is the thermal fuse on a Whirlpool Cabrio dryer?

The thermal fuse in a Whirlpool Cabrio dryer is typically located on the blower housing or the exhaust duct assembly, which becomes accessible after removing the rear or sometimes the lower front panel of the appliance.

How do I know my Whirlpool thermal fuse is blown, and what does it cost to fix?

Test the Whirlpool thermal fuse with a multimeter—no continuity means it’s blown. Typical repair costs range from $10–$20 CAD for a DIY fix to about $75–$150 CAD with professional service.

How to replace or change the thermal fuse on a Whirlpool Cabrio dryer?

To replace it, unplug the dryer, remove the rear panel, swap the faulty fuse on the blower housing with a new one, reconnect the wires, and run a test cycle to ensure proper heating.

What is the life expectancy of a Whirlpool Cabrio dryer?

The average life expectancy for a Whirlpool Cabrio dryer is around 10 to 13 years. This lifespan can be significantly impacted by regular maintenance, particularly keeping the lint filter and the entire exhaust venting system clean to prevent the overheating that causes thermal fuse failures.

Can a Whirlpool Cabrio thermal fuse cause it to not heat?

Yes, a blown thermal fuse is a very common cause of a Whirlpool Cabrio dryer running but not producing heat. The fuse is a safety device that opens the electrical circuit to the heating element when the internal temperature gets too high, which immediately cuts power to the heat source to prevent a potential fire hazard.
