Refrigerator main cables supply power to core components, while motor wire harness assemblies connect motors for smooth operation. Wire harness compressor assemblies link the compressor to controls, ensuring efficient cooling and safe electrical flow.
-

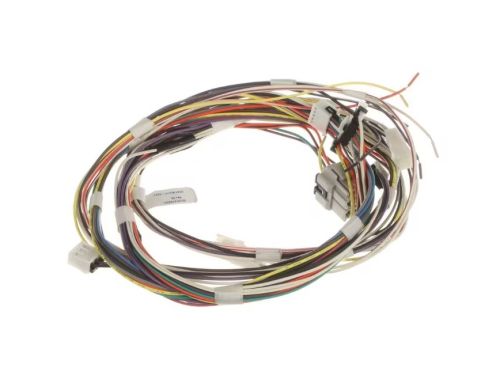

-10%General Electric WB18X47029 Refrigerator Latch Communication Wire HarnessSpecial Price $74.61 Regular Price $82.95 -

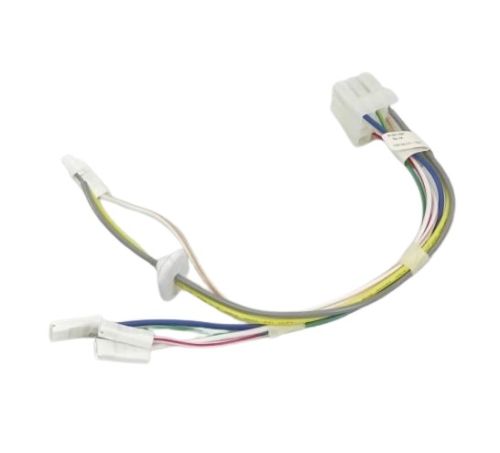

-37%Whirlpool W10871583 Refrigerator Dispenser Wire HarnessSpecial Price $58.49 Regular Price $92.60Out of stock -
-19% -
-32% -

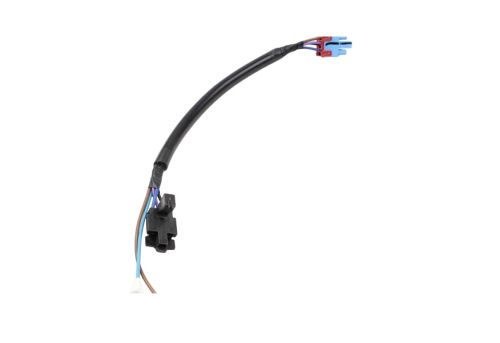

-16%Samsung DA39-00154J Refrigerator Wire Harness Compressor AssemblySpecial Price $34.96 Regular Price $41.79Out of stock -

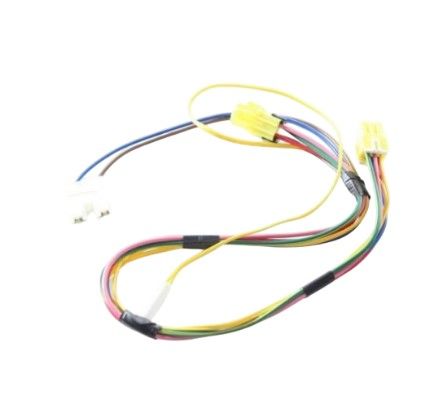

-24%Samsung DA96-00036W Refrigerator Assembly Wire Harness-AugerSpecial Price $58.14 Regular Price $76.95 -

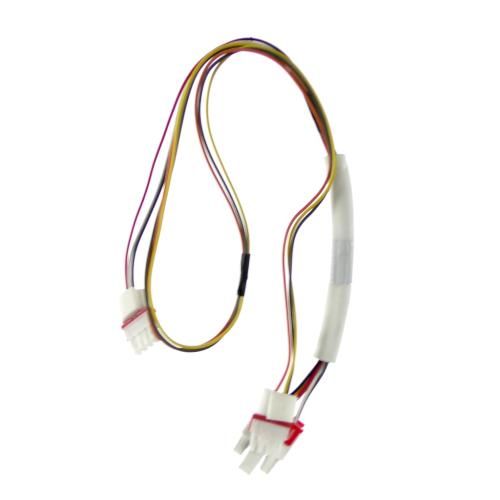

-16%Samsung DA96-00042S Refrigerator Motor Wire Harness AssemblySpecial Price $27.80 Regular Price $33.23Out of stock -

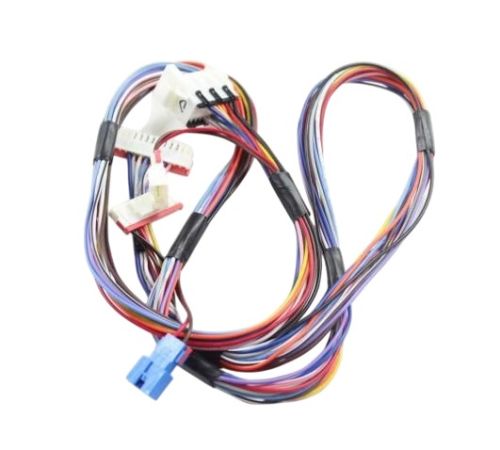

-24%Samsung DA96-00285K Refrigerator Cabinet W/Harness AssemblySpecial Price $53.78 Regular Price $70.95 -

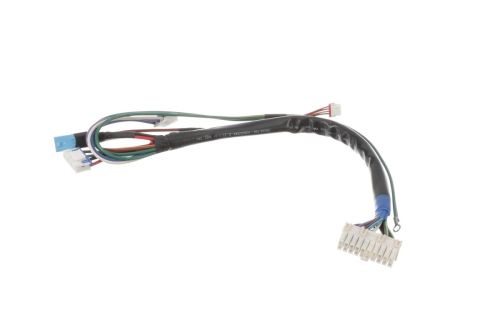

-28%Samsung DA96-00443A Refrigerator Inverter Box Wire Harness AssemblySpecial Price $72.29 Regular Price $99.95 -

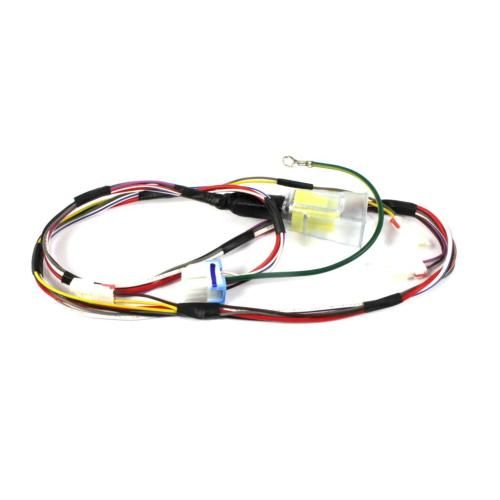

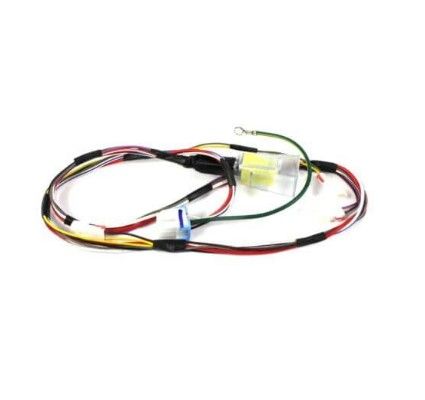

-24%Samsung DA96-00962E Refrigerator Top Wire Harness AssemblySpecial Price $63.09 Regular Price $82.95
Home & Kitchen Refrigerator Wire Harness Parts

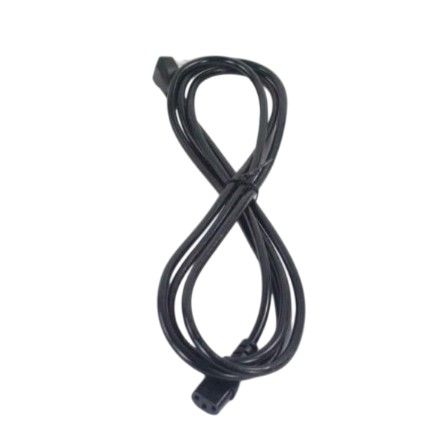

A refrigerator main cable is a critical electrical component that delivers power from the supply source to different sections of the appliance. Alongside the main cable are related components such as grounding wires, terminal connectors, and protective sleeves. The refrigerator motor wire harness assembly connects the appliance’s motors to the control system, allowing fans and pumps to operate correctly.
Another essential part is the refrigerator wire harness compressor assembly, which links the compressor to the control board and power supply, enabling efficient startup, regulated cooling cycles, and safe power transfer. These wiring assemblies are designed to organize, insulate, and protect electrical pathways inside the refrigerator. By reducing the risk of short circuits, preventing wire damage, and maintaining secure electrical connections, they play a crucial role in durability, safety, and long-term performance. Without them, refrigerators may face issues such as poor cooling, frequent malfunctions, or complete electrical failure.
At HnK Parts, we offer a wide selection of cables and wiring, including high-voltage main cables rated up to 250V, harness assemblies with heat-resistant insulation capable of withstanding temperatures up to 125°C, and flexible wire harnesses with multiple pin configurations (4-pin, 6-pin, and 8-pin) for compatibility with advanced models. Customers can choose from trusted brands such as Whirlpool, LG, Samsung, GE, Frigidaire, Bosch, and Electrolux.
FAQs
What is a motor wire harness assembly?
It is a set of organized wires that deliver electrical signals and power to the refrigerator motor for smooth operation.
Why does the motor stop running unexpectedly?
The motor wire harness assembly may have loose or broken connections disrupting power to the motor.
Can a bad harness affect cooling?
Yes, a faulty compressor wire harness can prevent the compressor from receiving proper power, reducing cooling.
What are the signs of a bad compressor wire harness?
Common signs include cooling failure, frequent tripping, burnt smells, or visible wire damage near the compressor.
Can I replace the harness myself?
Simple harness swaps are possible with basic skills, but professional help ensures proper installation and safety.
Why does my fridge trip the circuit breaker?
A short in the main cable or harness may cause excess current flow, leading to tripping.
