A PCB main control board in a washer acts as the brain of the machine, regulating wash cycles, water levels, motor speed, and drainage. It coordinates signals between components to ensure smooth, efficient operation.
-
-23%Samsung DC92-03106X Washing Machine PBA Module Assembly OWM_INV WA7500C 5.5Cu/FtSpecial Price $202.12 Regular Price $262.95Out of stock -

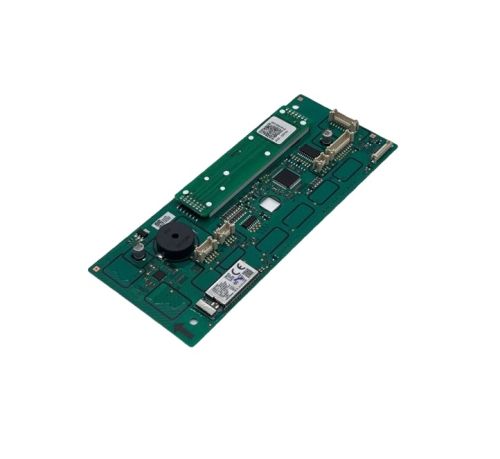

-23%Samsung DC92-03076U Washing Machine PBA Module AssemblySpecial Price $217.49 Regular Price $283.95 -

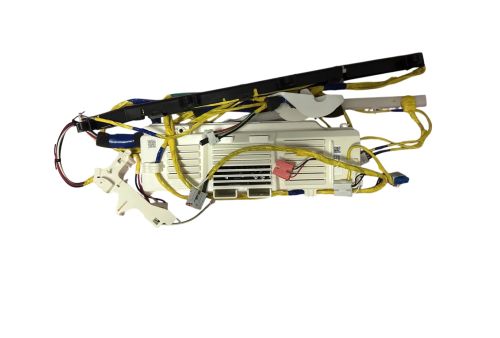

-27%Samsung DC92-03142B Washing Machine PCB Cover Assembly W/HarnessSpecial Price $287.94 Regular Price $394.95 -

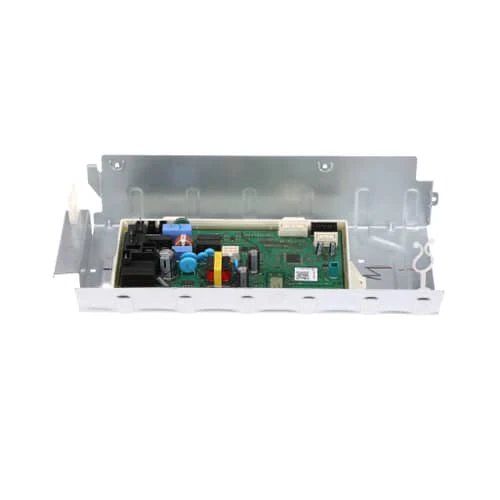

-19%Samsung DC97-21429E Washing Machine PCB Cover AssemblySpecial Price $175.83 Regular Price $216.18 -
-22%Samsung DC94-13844A Washer PCB EEPROM Assembly 0080 WF8000C_51CF DC92-0Special Price $133.89 Regular Price $171.95 -
-21%Samsung DC94-13085A Washing Machine PCB EEPROM AssemblySpecial Price $366.58 Regular Price $464.95
-

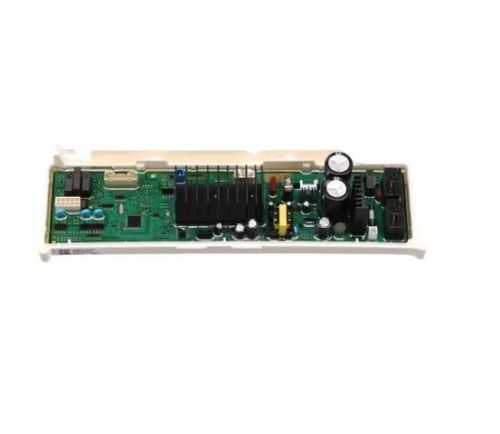

-27%Samsung DC92-02862E Washing Machine PCB KitSpecial Price $252.26 Regular Price $345.95Out of stock -
-27% -

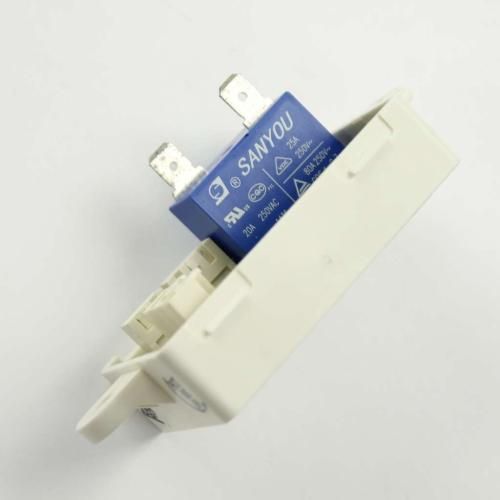

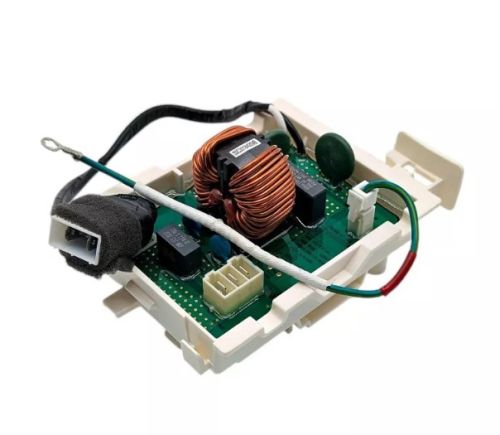

-22%Samsung DC92-03703B Washer EMI Filter PBA Module AssemblySpecial Price $131.46 Regular Price $168.95 -
-21%Samsung DC92-02636G Washing Machine PBA Kit Assembly OWM_AC, WA3200T 4.5Cu.FtSpecial Price $171.35 Regular Price $216.30 -
-23%Samsung DC92-03470C Washing Machine PBA Kit Assembly OWM_AC, WA3500C PulsatorSpecial Price $193.71 Regular Price $250.95Out of stock
PCB Accessories for Home & Kitchen Washers

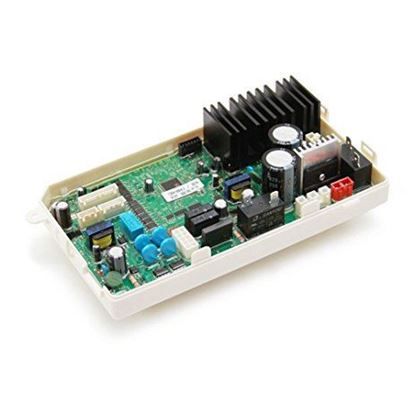

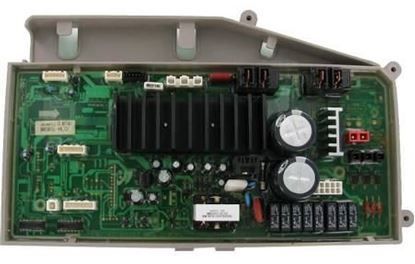

A main PCB in a washing machine is the central electronic board that regulates every function of the appliance. It manages signals between the motor, valves, drain pump, and sensors, ensuring correct timing and sequence during wash, rinse, and spin cycles. Built with microcontrollers and relay switches, the main board provides accurate control of voltage and power flow to each component.

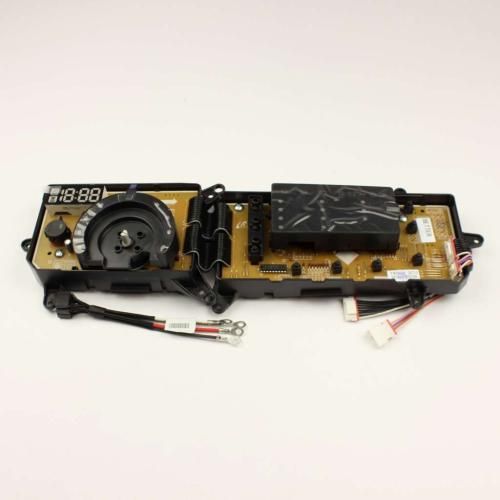

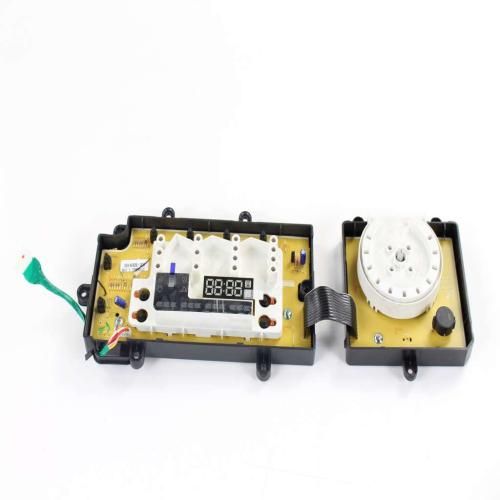

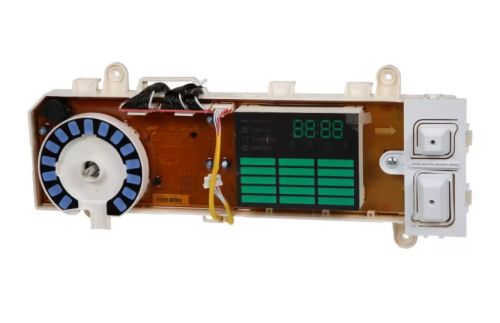

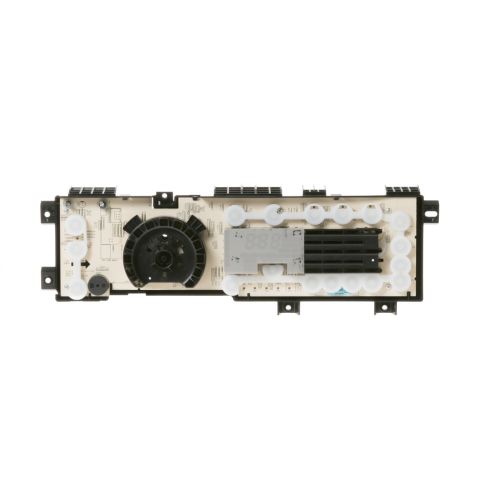

The PCB Main Control Board processes user inputs such as cycle selection, spin speed, and water level, then converts these commands into electrical signals. Alongside it, the PCB Display Assembly enables monitoring by showing wash programs, countdown timers, and error codes for troubleshooting. These control boards are engineered for high reliability, as failures can lead to power loss, false error messages, or complete system shutdown.
At HnKParts, we supply washer PCB parts with detailed specifications, including inverter boards (120V/240V, 200–500W capacity, heat-protected design), display modules (LCD/LED, 5–12V DC, backlit), wiring harness kits (multi-pin, PVC insulated, color-coded), sensor kits (temperature 0–100°C, pressure 0–5 bar), and relay boards (10A–30A, long-cycle durability). We stock compatible parts for major brands such as Whirlpool, and Bosch.
FAQs
What is the function of a PCB display assembly in washing machines?
A PCB display assembly allows users to interact with the washer by selecting cycles, monitoring progress, and viewing error codes for troubleshooting.
Why won’t my washer power on even when it’s plugged in?
A damaged main PCB may not be sending signals to the control panel or motor. Replacing it usually restores power.
My washer cycles are irregular—what could be the reason?
An issue with the control board may cause cycles to skip, pause, or run too long. Resetting or replacing it fixes timing problems.
What does a washing machine PCB kit typically include?
A washing machine PCB kit usually includes the main control board, display module, wiring harness, and sometimes sensors for complete system replacement.
Why is the display not lighting up on my washer?
If the screen is blank or unresponsive, the PCB display assembly might be defective, requiring inspection or replacement.
How do I know if my washer’s main control board is faulty?
When multiple components fail to respond, it’s likely the PCB main control board isn’t processing commands correctly.
