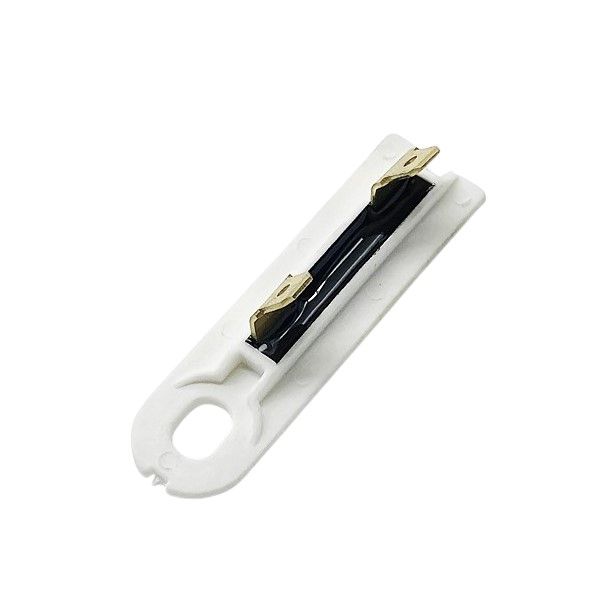

main product photo

Whirlpool W10909685 Dryer Thermal Fuse

Be the first to review this product
Special Price $28.88 Regular Price $58.88
In stock
Available Quantity:   233
SKU
W10909685

Product Description

The Whirlpool W10909685 Dryer Thermal Fuse helps to avoid the overheating of the dryer and the possible fire risks and this fuse is designed to sense high temperatures and it blows to prevent the heating element from overheating. It is located inside the dryer as a safety measure that would prevent the part from reaching hazardous temperatures. When fixing a thermal fuse, bring back proper dryer operation, protect other parts, and increase energy use effectiveness.
Add to Wish List
Fuse,
Manufacturer
✓ This Product Replaces: W10693363
https://www.hnkparts.com/media/catalog/product/w/1/w10909685-16059.jpg

This Part Fits the Following Models (573)

Maytag 7MMGDB835EW0 Dryer Maytag 7MMGD6630HC0 Dryer Maytag 7MMGD6630HW1 Dryer Maytag 7MMGDB855EC2 Dryer Maytag 7MMGDB855EC0 Dryer Maytag 7MMGDB855EC1 Dryer Maytag 8TMGD6630HW0 Dryer Whirlpool WED6620HW0 Dryer Whirlpool WED6620HW2 Dryer Whirlpool WED6120HC2 Electric Dryer Whirlpool WED6620HW1 Dryer Whirlpool WED6120HC1 Dryer Whirlpool WED6120HC0 Dryer Whirlpool WED5620HW1 Dryer Whirlpool WED5620HW2 Dryer
Showing 1-15 of 573
Manufacturer Name: WHIRLPOOL
Product Number: W10909685
OEM Part Number: W10909685
Product Description: Fuse-Thrml

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Whirlpool W10909685 Dryer Thermal Fuse
Your Rating
FAQS
Customer Questions
What maintenance is required for the Whirlpool W10909685 Thermal Fuse?

Regularly inspect the thermal fuse for signs of damage or overheating. Ensure the dryer vents are clear to prevent excess heat buildup. Always disconnect power before checking. Proper care can maintain safety and consistent dryer performance.

What are common issues with the Whirlpool W10909685 Thermal Fuse?

  • Dryer not starting or heating.
  • Fuse blowing repeatedly.
  • Intermittent power issues.
  • Overheating or tripping circuits.

Installation Steps

Step1: Unplug dryer and shut off gas supply if gas dryer; allow unit to cool.

Step2: Remove rear panel using proper tool, locate thermal fuse on blower housing or exhaust duct.

Step3: Disconnect wiring connectors from fuse carefully.

Step4: Remove mounting screw and take out faulty old fuse.

Step5: Install new fuse in same position, secure the and screw, reconnect wires.

Step6: Reassemble panel and test dryer cycle.
