main product photo

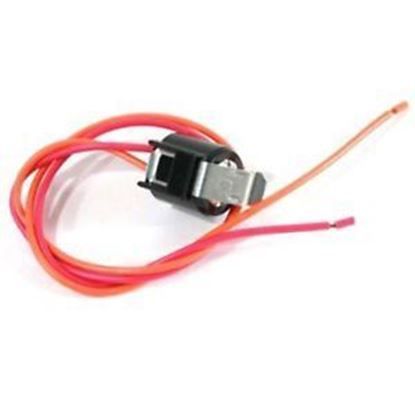

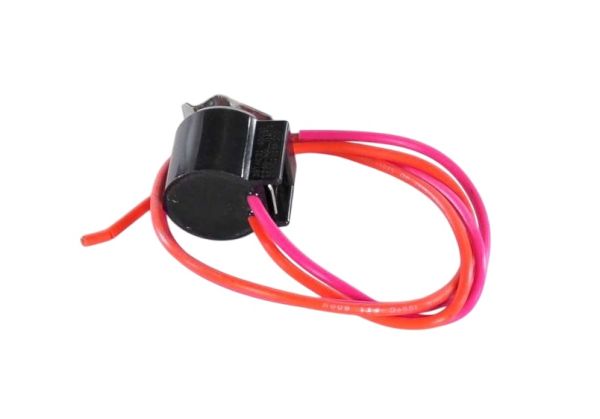

General Electric WR50X10108 Refrigerator Freezer Defrost Thermostat

Be the first to review this product
$18.98
In stock
Available Quantity:   126
SKU
WR50X10108

Product Description

The General Electric WR50X10108 Refrigerator Freezer Defrost Thermostat monitors evaporator temperature conditions and regulates the defrost circuit operation. It works through a temperature-sensitive switch mechanism that opens or closes the electrical circuit based on detected evaporator temperatures, controlling current flow to the defrost heater assembly. The thermostat is installed near the evaporator coil inside the freezer compartment, where it interfaces with the wiring harness and defrost system components through designated clips and connector points. It ensures controlled defrost activation, stable temperature monitoring and consistent refrigerator operation during cooling, defrost and temperature regulation cycles.
Add to Wish List
Refrigerator Thermostat , Thermostats, Defrost Thermostat
Manufacturer
✓ This Product Replaces: WR50X10109
https://www.hnkparts.com/media/catalog/product/w/r/wr50x10108-94728.jpg

This Part Fits the Following Models (160)

GE GYE22HSKMSS Bottom-Mount Refrigerator GE GYS22GMNCES Bottom-Mount Refrigerator GE GYE22HSKLSS Bottom-Mount Refrigerator GE GYS22GSNCSS Bottom-Mount Refrigerator GE GYE22HMKMES Bottom-Mount Refrigerator GE GYE22HMKLES Bottom-Mount Refrigerator GE GYE22HBLGTS Bottom-Mount Refrigerator GE GYE22HBLHTS Bottom-Mount Refrigerator GE PFD28KBLHTS Bottom-Mount Refrigerator GE PFD28KBLITS Bottom-Mount Refrigerator GE PFD28KBLKTS Refrigerator GE PFE28KBLITS Bottom-Mount Refrigerator GE PFD28KSLHSS Bottom-Mount Refrigerator GE PFD28KSLISS Bottom-Mount Refrigerator GE PFE28KBLHTS Bottom-Mount Refrigerator
Showing 1-15 of 160
Manufacturer Name: GENERAL ELECTRIC
Product Number: WR50X10108
OEM Part Number: WR50X10108
Product Description: Thermostat Defrost Fz

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:General Electric WR50X10108 Refrigerator Freezer Defrost Thermostat
Your Rating
FAQS
Customer Questions
No Questions

Installation Steps

Step 1: Disconnect the Appliance’s Power Supply - Prior to undertaking any maintenance on the WR50X10108 GE refrigerator defrost thermostat, it is essential for the appliance’s power supply to be disconnected. This can be accomplished by either unplugging the unit or shutting off the circuit breaker in your home's service panel.

Step 2: Locate the Defrost Thermostat - The thermostat is situated directly behind the temperature control located on the lower-right side of the refrigerator's food compartment.

Step 3: Remove the Old Defrost Thermostat - The old thermostat is to be carefully detached from the wall. It is secured with two screws. These screws are to be removed and the thermostat is to be gently pulled away from the wall.

Step 4: Remove the Wire Connectors - Two wire connectors are featured by the defrost thermostat and are attached to it. These are to be disconnected from the old thermostat and set aside.

Step 5: Install the New Defrost Thermostat - The new WR50X10108 GE refrigerator defrost thermostat is to be taken and the screws are to be aligned with the holes in the wall. It is to be gently pressed into position and the two screws are to be tightened.

Step 6: Reconnect the Wire Connectors - The two wire connectors are to be taken and attached to the new thermostat. It is to be ensured that they are pushed firmly onto the terminals to secure them.

Step 7: Test the Unit - After the new thermostat has been installed and the wires have been reconnected, the power may be turned back on to the appliance. A full cycle is to be completed by the refrigerator and it is to be verified that everything is functioning correctly.

Step 8: Clean Up - Once the installation is finished, a moment is to be taken to tidy up any mess created during the thermostat replacement. The area is to be vacuumed or swept and a final check is to be performed to ensure everything is in its designated place.

Please remember, these instructions are to serve as general guidance and should always be utilized alongside the manufacturer's manual, if available.
