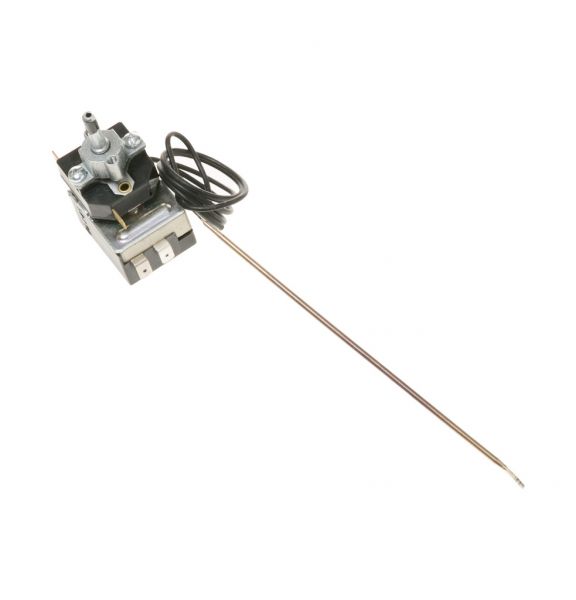

The General Electric WB24X24270 Range Oven Electric Thermostat is a built-in sensor and control unit that regulates the temperature of appliances. It serves the purpose of measuring the internal cooking cavity temperature and relaying this information to the control system to turn on and off heating elements in order to maintain the desired temperature. The thermostat is mounted on the wall of the oven and then it is connected to the control board and to the heating loops. The system supports maintaining a constant temperature, assists in achieving consistent cooking and provides constant functioning in normal use.
Please, mind that only logged in users can submit questions
Installation Steps
Step 1: Disable your power source. Prior to initiating your DIY replacement task, it is crucial that all electricity supplied to the thermostat is disabled. This is accomplished by turning off the breaker located in the fuse box.
Step 2: Remove the cover screws. A screwdriver is employed to extract the screws securing the thermostat cover. The cover is detached and preparation is made to take out the old unit.
Step 3: Disconnect the wires. Each wire is gently detached individually. It is vital that track of which wire connects to which terminal is kept for a straightforward installation of the new thermostat.
Step 4: Connect the new thermostat. Your new GE thermostat model WB24X24270 is grabbed and, utilizing the same technique as before to remove the wires, linking of each wire to the terminals within the new unit is started.
Step 5: Secure the cover. After ensuring all wires are firmly attached to the new thermostat, the cover is replaced and fastened with the screws.
Step 6: Restore the power. With your new thermostat installed, it’s time for the power to be restored. The fuse box is headed to and the breaker is turned back on for the thermostat.
Step 7: Adjust the temperature. Your new thermostat is now operational - the temperature is set to your preference and the enhanced comfort of your home is relished.
Please note that these instructions serve as general guidance and should always be utilized alongside the manufacturer's manual, if accessible.
