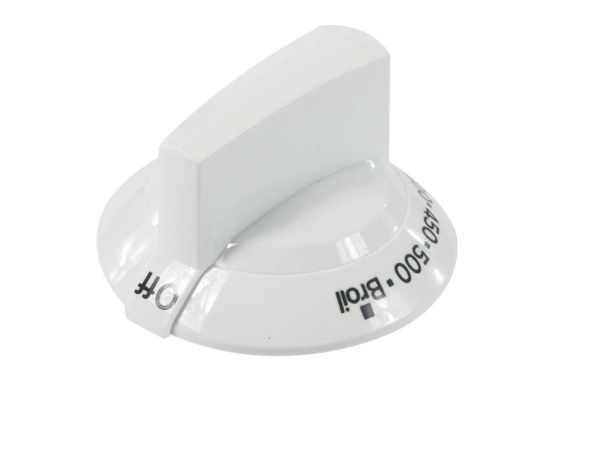

The General Electric WB03X21229 Range Knob Thermostat Assembly allows adjustment of cooking temperature settings by transferring user input from the control knob to the thermostat control section. It enables selection of desired heat levels and temperature regulation functions through a rotating control interface on the range panel. The assembly is installed on the control panel, where it connects to the thermostat shaft and aligns with corresponding temperature indicators. Its integrated knob and control arrangement provide easy operation, specific temperature adjustment, and consistent control of cooking functions within the range system.
Step 1: The oven or stove should be disconnected from the electrical supply and allowed to cool down entirely.
Step 2: The old knob assembly should be extracted. A small flat head screwdriver should be utilized to gently lift the top section off the knob. Next, the knob should be detached from the stem and the two screws securing the thermostat assembly should be unscrewed.
Step 3: The new GE WB03X21229 Knob Thermostat Assembly should be inserted into the designated space and fastened using the two screws.
Step 4: The wires should be joined according to their respective colors and ensured that they are firmly positioned.
Step 5: The knob should be reattached onto the stem and the top component should be pressed down until it snaps into position.
Step 6: The oven or stove should be reconnected to the electrical supply and the functionality of the new thermostat assembly should be verified before operating your appliance.
By executing these straightforward steps, the GE WB03X21229 Knob Thermostat Assembly in your oven or stove can be successfully swapped.
Please note that these instructions are served as general advice and should always be utilized alongside the manufacturer's manual, if available.
