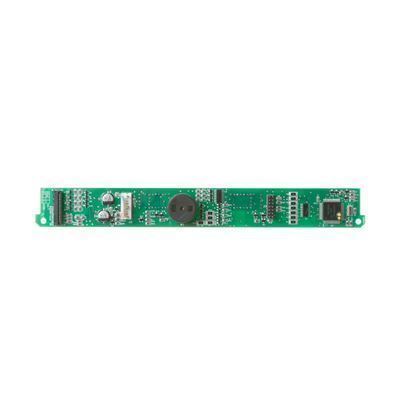

General Electric WR55X10684 Refrigerator Temperature Control Board Assembly

Rating:
5 5 1
1 Review Add Your Review
Special Price $157.44 Regular Price $175.95
In stock
Available Quantity:   42
SKU
WR55X10684

Product Description

The General Electric WR55X10684 Temperature Control Board Assembly is used to control the temperature of the refrigerator. Used to regulate the temperature, and maintain stability in the operation of the compressor and fans. This board functions by analyzing data from temperature sensors and controlling the cooling cycles to avoid changes. It also increases energy consumption, extends durability, and helps to preserve food for longevity.
Add to Wish List
Refrigerator Parts, Control Boards,
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/r/wr55x10684_general-electric_hnkparts.jpg

This Part Fits the Following Models (274)

GE CFCP1ZIYCSS Bottom-Mount Refrigerator GE CFCP1ZIYASS Bottom-Mount Refrigerator GE CFCP1NIZASS Bottom-Mount Refrigerator GE CFCP1NIYCSS Bottom-Mount Refrigerator GE CFCP1NIYASS Bottom-Mount Refrigerator GE CFCP1NIXCSS Bottom-Mount Refrigerator GE CFCP1NIZDSS Bottom-Mount Refrigerator GE CFCP1NIZCSS Bottom-Mount Refrigerator GE CFCP1NIZBSS Bottom-Mount Refrigerator GE GNE22GGEBFWW Bottom-Mount Refrigerator GE GNE22GGEAFWW Bottom-Mount Refrigerator GE GNE22GGEBFBB Bottom-Mount Refrigerator GE GFCE1NFBADSS Bottom-Mount Refrigerator GE CFCP1NIXASS Refrigerator - X Series GE CFCP1NIXBSS Bottom-Mount Refrigerator
Showing 1-15 of 274

Product Overview:

Provides electronic temperature control for applicable refrigerators. The GENERAL ELECTRIC WR55X10684 Refrigerator Temperature Control Board Assembly processes temperature-related information from the refrigerator's sensing system and generates corresponding control responses. It forms part of the appliance's electronic temperature-control system and supports coordinated cooling operation.

Cooling Control:

Provides electronic control responses associated with refrigerator cooling activity. As temperature conditions change, the board coordinates the related control signals required by the cooling system. This supports regulated cooling operation rather than continuous operation at a fixed control response.

Temperature Regulation:

Supports maintenance of the refrigerator's selected temperature conditions by coordinating applicable cooling-control responses. When sensed conditions change, the board contributes to the electronic control process that adjusts related cooling activity according to the refrigerator's temperature requirements.

Replacement Guidelines:

Replacing the Refrigerator Temperature Control Board Assembly is appropriate if it is damaged, malfunctioning, excessively worn, or otherwise deteriorated. Verify the GENERAL ELECTRIC part number WR55X10684 and the complete refrigerator model number before replacement. Replace the control board assembly if deterioration affects temperature sensing, control processing, cooling responses, temperature regulation, or normal refrigerator operation.

Common Failure Symptoms:

  • Refrigerator temperature becoming inconsistent.
  • Refrigerator becoming too warm or too cold.
  • Cooling cycles becoming irregular.
  • Cooling activity becoming excessive or insufficient.
  • Temperature controls responding abnormally.
  • Temperature-related control responses becoming intermittent.
  • Refrigerator failing to maintain selected temperature conditions.

Equipment Compatibility:

The GENERAL ELECTRIC WR55X10684 Refrigerator Temperature Control Board Assembly is intended for equipment that specifies part number WR55X10684. Verify the complete refrigerator model number and manufacturer's parts documentation before purchasing to help confirm the correct application.

Technical Specifications:

Brand: GENERAL ELECTRIC

Part Number: WR55X10684

Product Type: Temperature Control Board Assembly

Appliance Type: Refrigerator

Reviews 1
Write Your Own Review
You're reviewing:General Electric WR55X10684 Refrigerator Temperature Control Board Assembly
Your Rating
FAQS
Customer Questions
What maintenance is required for the General Electric WR55X10684 Temperature Control Board Assembly?

Check that all wiring connections are secure and free from corrosion. Inspect the board for dust accumulation and clean carefully. Test temperature sensor inputs to ensure the board regulates compressor and fan operation accurately.

What are common issues with the General Electric WR55X10684 Temperature Control Board Assembly?

  • Temperature settings are not controlling properly.
  • Compressor is cycling irregularly.
  • Cooling uneven across compartments.
  • Defrost cycles are not triggering correctly.

Why does the WR55X10684 have multiple electrical connections?

The connections allow the control board to exchange electrical signals with applicable temperature-sensing, control, and refrigerator operating circuits.

What is the General Electric WR55X10684 Refrigerator Temperature Control Board Assembly?

The General Electric WR55X10684 is a temperature control board assembly designed for compatible refrigerator models to help manage temperature-related electronic functions.

What does the GE WR55X10684 Temperature Control Board Assembly do?

The assembly helps process temperature-related signals and control refrigerator functions according to the appliance’s electronic control system.

How do I know if the GE WR55X10684 Temperature Control Board needs to be replaced?

Inconsistent temperature control, unusual refrigerator operation, or persistent temperature-related issues may indicate a control board problem after other components have been checked.

Can a faulty temperature control board affect refrigerator cooling?

Yes. A malfunctioning temperature control board can interfere with the refrigerator’s ability to properly manage temperature-related functions.

Installation Steps

Step1: Unplug the refrigerator and access the control housing.

Step2: Remove the cover to expose the control board.

Step3: Label and disconnect the wire connectors from the old board.

Step4: Release the board from its mounting tabs.

Step5: Install the new board and reconnect all wiring.

Step6: Reattach the cover and restore power to test operation.
