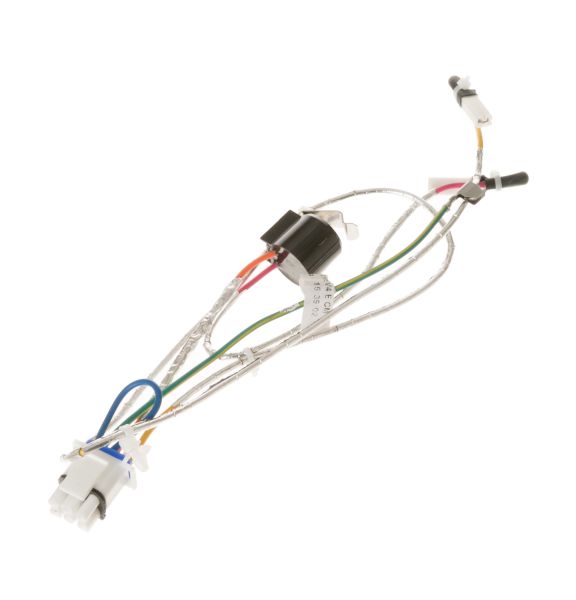

GE WR23X23626 Refrigerator Heater Harness

Special Price $38.74 Regular Price $58.03
In stock
Available Quantity:   63
SKU
WR23X23626

Product Description

The GE WR23X23626 Refrigerator Harness is a wiring that provides power to the defrost heater of the appliance. The primary function of the heating is to link the control board with the defrost heater to allow the system to melt frost on the evaporator. The mechanism of the harness is to deliver electrical current via insulated wires, and connectors that are secure to use. It is installed between the control module and heater assembly in the freezer compartment. Correct installation assists in ensuring efficient defrost cycles, ice formations, and effective cooling functions.
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/r/wr23x23626_general-electric_hnkparts.png

This Part Fits the Following Models (144)

GE GFE28HSKLSS Bottom-Mount Refrigerator GE GFE28HSKKSS Bottom-Mount Refrigerator GE GFE28HMKKES Bottom-Mount Refrigerator GE GFE28HMKLES Bottom-Mount Refrigerator GE CFE28TP2MCS1 Bottom-Mount Refrigerator GE GFE28GSKLSS Bottom-Mount Refrigerator GE GFE28GGKJWW Bottom-Mount Refrigerator GE GFE28GMKKES Bottom-Mount Refrigerator GE GFE28GGKJBB Bottom-Mount Refrigerator GE GFE28GBLFTS Bottom-Mount Refrigerator GE GFE28GELFDS Bottom-Mount Refrigerator GE GFE28GELHDS Bottom-Mount Refrigerator GE GFD28GELFDS Bottom-Mount Refrigerator GE GFD28GBLFTS Bottom-Mount Refrigerator GE CFE28TP2MDS1 Bottom-Mount Refrigerator
Showing 1-15 of 144
Manufacturer Name: GENERAL ELECTRIC
Product Number: WR23X23626
OEM Part Number: WR23X23626
Product Description: Heater Harness Ff

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:GE WR23X23626 Refrigerator Heater Harness
Your Rating
Customer Questions
What maintenance is required for the General Electric WR23X23626 Heater Harness?

Periodically inspect the heater harness for signs of fraying, corrosion, or loose electrical connections. Ensure the wiring is securely connected and free from moisture buildup. Keeping the refrigerator interior clean and dry supports prevent electrical issues. Proper handling during inspections reduces the risk of damage and ensures consistent defrost and heating performance.

What are common issues with the General Electric WR23X23626 Heater Harness?

  • Heater failure leading to frost buildup in the fresh food compartment.
  • Intermittent or no power due to damaged wiring or loose connections.
  • Electrical shorts or open circuits within the harness.
  • Inconsistent temperature regulation affecting cooling performance.

Installation Steps

Step1: Unplug refrigerator and empty fresh food compartment to ensure safety and access.

Step2: Remove shelves and interior panels to reach the evaporator area.

Step3: Disconnect old heater harness safely, noting connector positions.

Step4: Route and install new heater harness along original path, securing clips.

Step5: Reconnect all electrical plugs firmly and check tight fit.

Step6: Reassemble panels, restore power, and confirm proper defrost and cooling operation system.
