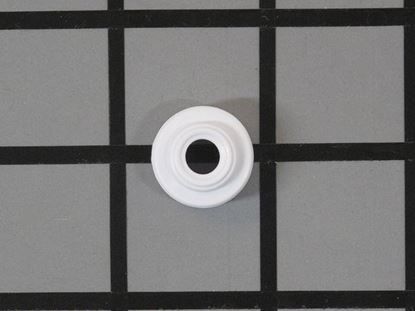

General Electric WR01X10209 Refrigerator Wheel Pan Connector

Special Price $12.30 Regular Price $12.37
In stock
Available Quantity:   623
SKU
WR01X10209

Product Description

WHEEL PAN CO
Manufacturer

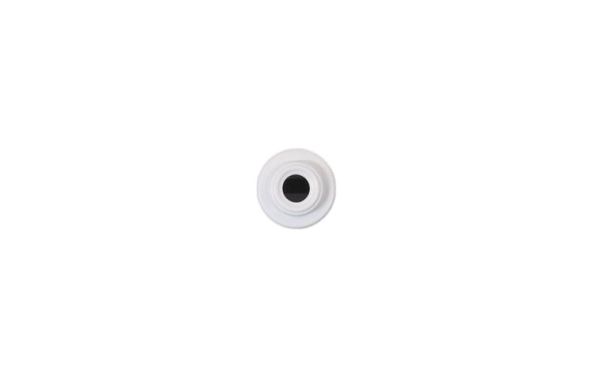

https://www.hnkparts.com/media/catalog/product/w/r/wr01x10209-68509.jpg

This Part Fits the Following Models (994)

GE XSS23GGKRCBB Refrigerator GE ZCG23SGSBSS Refrigerator GE ZCG23SGSCSS Refrigerator GE ZCE23SGTCSS Refrigerator GE ZCE23SGTISS Refrigerator - T Series GE ZCE23SGTJSS Refrigerator - T Series GE XSS25GSHRCSS Refrigerator GE ZCE23NGTAFNB Refrigerator - T Series GE ZCE23NGTIFNB Refrigerator - T Series GE ZCE23NGTJFNB Refrigerator - T Series GE ZCE23SGTASS Refrigerator GE ZFSB23DNASS Refrigerator GE ZFSB23DNDSS Refrigerator GE ZFSB23DRASS Refrigerator GE ZFSB23DRBSS Refrigerator
Showing 1-15 of 994
Manufacturer Name: GENERAL ELECTRIC
Product Number: WR01X10209
OEM Part Number: WR01X10209
Product Description: Wheel Pan Co

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:General Electric WR01X10209 Refrigerator Wheel Pan Connector
Your Rating
Customer Questions
What maintenance is required for the General Electric WR01X10209 Wheel Pan Cover?

Inspect the wheel pan cover regularly for cracks, wear, or looseness that may affect drawer movement inside the refrigerator. Clean the surrounding track and wheel area to prevent debris buildup that can cause sticking or uneven sliding. Avoid overloading refrigerator drawers, as excess weight can strain the wheel support components. Disconnect power before performing repairs near internal refrigerator parts.

What are common issues with the General Electric WR01X10209 Wheel Pan Cover?

  • Drawer not sliding smoothly.
  • Wheel becoming cracked or worn.
  • Pan cover misalignment during operation.
  • Grinding or squeaking noises when opening drawers.

Installation Steps

Step1: Disconnect power to the refrigerator by unplugging it from the wall outlet and remove the lower rack for better access.

Step2: Locate the wheel pan connector under the rack assembly.

Step3: Remove the damaged connector by gently unclipping it.

Step4: Align and snap in the new wheel pan connector securely.

Step5: Reinstall the rack, restore power, and test smooth movement.

Step6: Handle sharp edges carefully to avoid injury during installation.
