The Whirlpool WPW10677118 Electronic Control Board is used to control the cooling and defrost operations of the refrigerator. This board regulates temperature, controls the compressor, and has sensors for the proper functioning. Feeds data from internal sensors, and regulates the cooling cycles to ensure the temperature and energy usage is optimum. Improve the general dependability of the system. Fixing the control board ensures that the refrigerator cools as it should, and preserves the food has longevity.

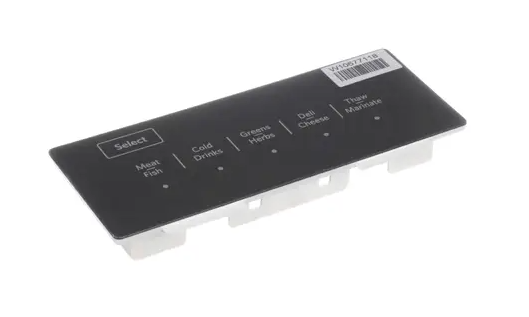

Controls temperature controlled drawer relies on a dedicated electronic interface to receive user selections and present the corresponding settings. The WHIRLPOOL WPW10677118 Refrigerator Electronic Control Board is a user control and display board associated with the pantry drawer in specified KitchenAid refrigerators. It serves as the dedicated interface for the drawer's available temperature-setting functions.
User Selection Control:
Electrical inputs are registered when a user selects a drawer setting, and the board provides the corresponding interface response. Its circuitry handles the incoming selection information and drives the associated display so the selected setting can be presented to the user.
Temperature Controlled Drawer:
Selected temperature settings are communicated through the board to the refrigerator’s control system, which uses the selection according to its programmed operating requirements. The board therefore supports the temperature-setting operation of the designated drawer without serving as the refrigerator’s main cooling control.
Replacement Guidelines:
Replacement may be appropriate when the WPW10677118 no longer provides the intended control or display function for the temperature-controlled drawer. A correctly specified replacement restores the user-interface function required by the applicable refrigerator configuration.
Common Failure Symptoms:
Temperature-controlled drawer becoming too warm
Temperature-controlled drawer becoming too cold
Drawer settings failing to respond as expected
Drawer control selections not being registered
Display information associated with the drawer becoming unavailable or abnormal
Equipment Compatibility:
The WHIRLPOOL WPW10677118 Refrigerator Electronic Control Board is designed to manage electronic functions within compatible refrigerator models. Always verify the complete refrigerator model number and part number WPW10677118 before purchase to confirm compatibility.
What maintenance is required for the Whirlpool WPW10677118 Electronic Control Board?
Ensure connections remain fully seated and free from condensation or residue. Keep the surrounding area dry and clear of ice buildup. Confirm that the display responds correctly to input. Test settings periodically to ensure accurate temperature and function control.
What are common issues with the Whirlpool WPW10677118 Electronic Control Board?
Cooling cycles inconsistent.
Display showing incorrect readings.
Ice or water dispenser is failing.
Erratic control panel responses.
What does the Whirlpool WPW10677118 control in a refrigerator?
The WPW10677118 provides the user control and display interface for the temperature-controlled pantry drawer and its available temperature settings.
How does the WPW10677118 respond when a drawer temperature setting is selected?
It registers the electrical input from the user's selection and provides the corresponding interface response through the associated display.
Is the Whirlpool WPW10677118 the refrigerator's main cooling control board?
No. It supports the temperature-setting operation of the designated drawer rather than serving as the refrigerator's main cooling control.
What problems can occur when the WPW10677118 is not functioning properly?
The drawer may fail to respond to settings, selections may not register, or associated display information may become unavailable or abnormal.
How can I confirm that the Whirlpool WPW10677118 is the correct replacement board?
Check the complete refrigerator model number and part number WPW10677118 against the applicable manufacturer parts information before purchase.
Installation Steps
Step1: Unplug the refrigerator to prevent electrical shock.
Step2: Remove the rear access panel to reach the control board.
Step3: Disconnect all wire harnesses from the old board.
Step4: Unscrew and remove the faulty electronic control board.
Step5: Install the new board and reconnect all wiring securely.
Step6: Replace the panel, restore power, and verify refrigerator operation.
