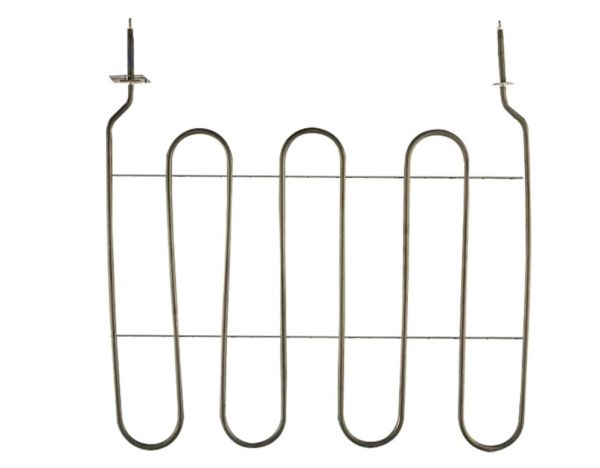

Whirlpool WPW10611615 Range Broil Element

Special Price $78.54 Regular Price $93.95
In stock
Available Quantity:   5
SKU
WPW10611615

Product Description

The Whirlpool WPW10611615 Range Broil Element generates radiant heat from the upper section of the appliance cavity for broiling and high-temperature cooking. It occupies the upper interior area and has its terminals connected to the electrical supply through the corresponding wiring and control circuit. An active electrical current passes through the element, producing heat that radiates toward the food placed below. Its location directs heat downward across the cooking area and provides the concentrated heating required for broiling, browning and other selected upper-heat cooking processes.
Stove & Oven Parts, Heating Elements,
17.57"X3.57"X20"
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/p/wpw10611615-70980.jpg

This Part Fits the Following Models (205)

Whirlpool WGI925C0BS00 30" Double Oven Induction Range Whirlpool YGGE390LXQ00 30" Freestanding Electric Range Whirlpool YGGE390LXQ03 30" Freestanding Electric Range Whirlpool YGGE390LXS00 30" Freestanding Electric Range Whirlpool YGGE390LXS03 30" Freestanding Electric Range Whirlpool WGE745C0FE05 Electric Range Whirlpool WGE745C0FH05 Electric Range Whirlpool Electric Range WGE755C0BH00 WGE755C0BH00 Whirlpool Electric Range WGE755C0BE00 WGE755C0BE00 Whirlpool Electric Range WGE755C0BS00 WGE755C0BS00 Whirlpool GGE390LXB01 30" Freestanding Electric Range Whirlpool GGE390LXB02 30" Freestanding Electric Range Whirlpool GGE388LXS03 30" Freestanding Electric Range Whirlpool GGE388LXS04 30" Freestanding Electric Range Whirlpool GGE390LXB00 30" Freestanding Electric Range
Showing 1-15 of 205
Write Your Own Review
You're reviewing:Whirlpool WPW10611615 Range Broil Element
Your Rating
Customer Questions
What maintenance is required for the Whirlpool WPW10611615 Broil Element?

Wipe the broil element gently to remove food residue or grease. Confirm it heats evenly across the surface. Verify that temperature adjustments respond correctly and that broiling cycles operate consistently during repeated use without uneven cooking or sparks.

What are common issues with the Whirlpool WPW10611615 Broil Element?

  • Heating uneven across element.
  • Element not turning on.
  • Sparking during operation.
  • Broiling cycles delayed or inconsistent.

Installation Steps

Step1: Turn off power to the range at the circuit breaker.

Step2: Open the oven and remove screws securing the broil element.

Step3: Gently pull the element forward and disconnect wiring.

Step4: Attach wires to the new broil element terminals securely.

Step5: Position it correctly and fasten mounting screws.

Step6: Restore power and test the operation.
