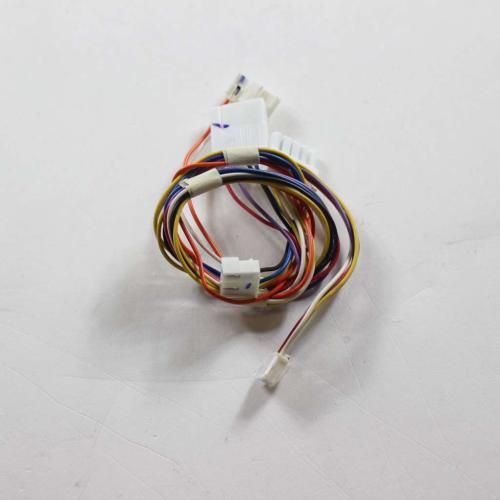

Whirlpool WPW10424230 Refrigerator Wire Harness

Special Price $53.05 Regular Price $57.95
In stock
Available Quantity:   11
SKU
WPW10424230
✓ This Product Replaces: W10424230

Product Description

The Whirlpool WPW10424230 Refrigerator Wire Harness provides electrical power and low-voltage control signals to internal components, enabling the sensor, fans, lighting and control modules to synchronize in their operation. It is installed in the cabinet and compartments of the refrigerator, attached to the structural paths with the support of clips or ties, and linked to each other with multi-pin connectors fitting specific terminals. The harness is connected to the main control board and peripherals, and signal paths and grounding paths for proper operation.
Wire,
Manufacturer

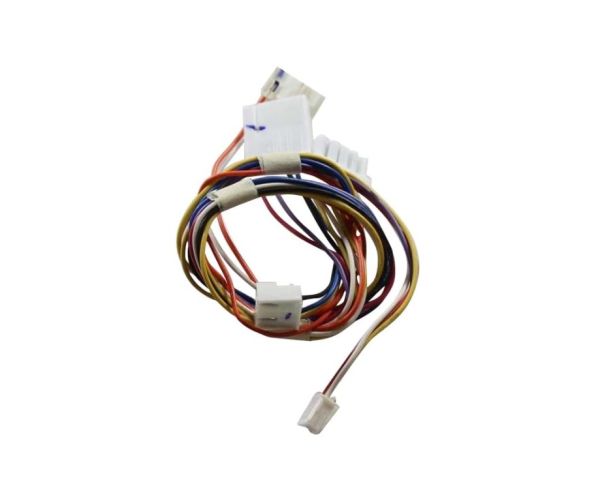

https://www.hnkparts.com/media/catalog/product/w/p/wpw10424230-94590.jpg

This Part Fits the Following Models (154)

Whirlpool WRF560SFYH03 Refrigerator Whirlpool WRF560SFYH02 Refrigerator Whirlpool WRF560SFYH04 Refrigerator Whirlpool WRF560SFYM01 Refrigerator Whirlpool WRF560SFYM04 Refrigerator Whirlpool WRF560SFYM05 Refrigerator Whirlpool WRF560SFYE03 Refrigerator Whirlpool WRF560SFYH01 Refrigerator Whirlpool WRF560SFYW01 Refrigerator Whirlpool WRF560SEYB05 Refrigerator Whirlpool WRF560SEYB02 Refrigerator Whirlpool WRF560SEHW01 Bottom-Mount Refrigerator Whirlpool WRF560SEHZ01 Bottom-Mount Refrigerator Whirlpool WRF560SEYM05 Refrigerator Whirlpool WRF560SEYM02 Refrigerator
Showing 1-15 of 154
Manufacturer Name: WHIRLPOOL
Product Number: WPW10424230
OEM Part Number: WPW10424230
Product Description: Harns-Wire
