main product photo

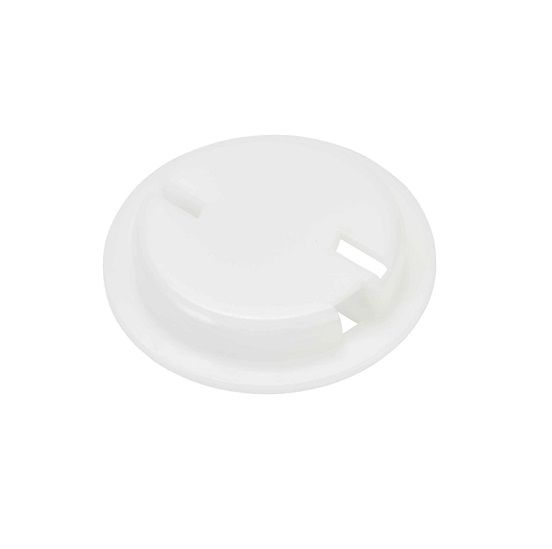

Whirlpool WPD7749401 Refrigerator Cap-Helix

Be the first to review this product
$18.42
In stock
Available Quantity:   20
SKU
WPD7749401

Product Description

The Whirlpool WPD7749401 Cap-Helix is a small but crucial component of your refrigerator's ice maker. It's a plastic end cap that attaches to the auger, a spiral component that smashes and removes ice cubes from the ice maker mold. The cover keeps the auger's end sealed and keeps ice or debris from building up inside, ensuring smooth operation. This small part is crucial to keeping your ice maker clean and functional. A broken cap-helix might cause ice production to slow down or stop completely, which could leave you running out of fresh ice for your drinks. Compatible with Whirlpool, Maytag, KitchenAid, and other brands of refrigerators that use WPD7749401 a comparable ice maker design referred.

Add to Wish List
Manufacturer
✓ This Product Replaces: D7749401, 4343893, D7749401
https://www.hnkparts.com/media/catalog/product/w/p/wpd7749401-31007.jpg

This Part Fits the Following Models (579)

Crosley CS26G9DQ Side-By-Side Refrigerator Crosley CS26G8DW Side-By-Side Refrigerator Crosley CS26G9DW Side-By-Side Refrigerator Crosley CS26G7DW-PCS26G7D0W0 Side-By-Side Refrigerator Amana SZD27MPW-P1124306WW 27 Cubic Foot Side-By-Side Refrigerator with Ice & Water - M Model Amana SZD27MW-P1124301WW Side-By-Side Refrigerator Amana SZD27MW-P1124304WW 27 Cubic Foot Side-By-Side Refrigerator with Ice & Water - M Model Amana SZD27NE-P1162404WE Side-By-Side Refrigerator Amana SZD27NE-P1162410WE Side-By-Side Refrigerator Amana SZD27NL-P1162404WL Side-By-Side Refrigerator Amana SZD27NL-P1162410WL Side-By-Side Refrigerator/Freezer with Ice & Water - N Model Amana SZD27NW-P1162404WW Side-By-Side Refrigerator Amana SZD27NW-P1162410WW Side-By-Side Refrigerator/Freezer with Ice & Water - N Model Crosley CS26G9DB Side-By-Side Refrigerator Crosley CS26G8DZ Side-By-Side Refrigerator
Showing 1-15 of 579
Manufacturer Name: WHIRLPOOL
Product Number: WPD7749401
OEM Part Number: WPD7749401
Product Description: Cap-Helix

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Whirlpool WPD7749401 Refrigerator Cap-Helix
Your Rating
FAQS
Customer Questions
No Questions

Installation Steps

Step 1: The required tools and materials will need to be assembled. A Phillips-head screwdriver, needle nose pliers, a new Whirlpool WPD7749401 CAP- HELIX, and an adjustable wrench will be needed.

Step 2: The appliance should be disconnected from the power supply. Either the electrical cord should be unplugged from the outlet or the circuit breaker at the main panel should be switched off to ensure the appliance is completely powered down.

Step 3: The screws securing the CAP- HELIX should be taken out. The Phillips-head screwdriver should be utilized to extract the screws from the mounting bracket, then the CAP- HELIX should be gently pulled free.

Step 4: The new CAP- HELIX should be positioned. The tabs of the replacement CAP- HELIX should be aligned with the slots in the mounting bracket and then it should be fastened using the Phillips-head screwdriver.

Step 5: The appliance should be reconnected to the power source. The electrical cord should be inserted back into the outlet or the circuit breaker at the main panel should be reactivated.

Step 6: The functionality of the CAP- HELIX should be verified. The appliance should be powered on and it should be confirmed that it operates correctly.

Please remember that these instructions serve as general guidance and should always be utilized alongside the manufacturer's manual, if accessible.
