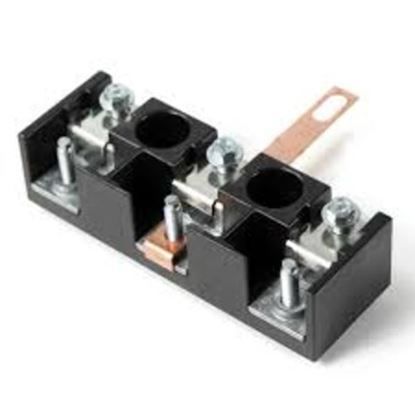

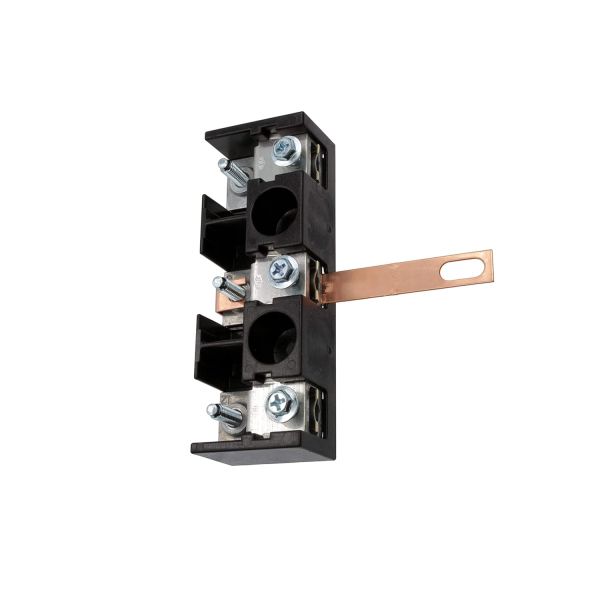

Whirlpool WP9761958 Range Block Terminal

Special Price $15.67 Regular Price $26.92
In stock
Available Quantity:   314
SKU
WP9761958

Product Description

The Whirlpool WP9761958 is a terminal block, a critical component that serves as a connection point for your Whirlpool range's electrical system.  Imagine it as a well-organized electrical meeting spot. The terminal block securely connects incoming power from your home's wiring to the range's internal wire harness, which distributes electricity to various components such as the burners, oven, and clock.This unsung hero ensures that your range has the necessary electricity to run. A malfunctioning terminal block can impair power flow, perhaps causing problems or a total blackout of your equipment.  Replacing a worn-out terminal block with a genuine Whirlpool WP9761958 guarantees a safe and dependable electrical connection, allowing your range to perform optimally.  For those who are acquainted with DIY, replacing this part is pretty simple.

Manufacturer
https://www.hnkparts.com/media/catalog/product/w/p/wp9761958-11638.jpg

This Part Fits the Following Models (354)

KitchenAid KERI203PWH0 Range KitchenAid KERI203PWH2 Range KitchenAid KERI203PWH3 Range Jenn-Air JDRP548WP02 Range Jenn-Air JDRP436HL00 Range Jenn-Air JDRP436HM00 Range Jenn-Air JDRP548WP01 Range Jenn-Air JDRP430WP01 Range Jenn-Air JDRP430WP02 Range Jenn-Air JDRP430HL00 Range Jenn-Air JDRP430HM00 Range Jenn-Air JDRP430WP00 Range Jenn-Air JDRP636HL00 Range Jenn-Air JDRP548WP03 Range Jenn-Air YJDRP536WP00 Gas Range
Showing 1-15 of 354
Manufacturer Name: WHIRLPOOL
Product Number: WP9761958
OEM Part Number: WP9761958
Product Description: Block-Term Range

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:Whirlpool WP9761958 Range Block Terminal
Your Rating
Customer Questions
No Questions
Please, mind that only logged in users can submit questions

Installation Steps

Step 1: The range should be disconnected from the wall outlet to guarantee it is completely detached from the electrical source.

Step 2: The necessary tools, including a Phillips screwdriver, putty knife or flathead screwdriver, pliers, and a new WP9761958 terminal block, should be collected.

Step 3: The range’s control panel should be accessed by taking out the screws using a Phillips screwdriver.

Step 4: To reach the terminal block, it may be necessary for additional components, such as the oven temperature sensor, to be detached, which are linked to the terminal block.

Step 5: The wires connected to the existing terminal block should be removed by carefully pulling them away from the terminals.

Step 6: The existing terminal block should be taken off using a Phillips screwdriver.

Step 7: The new WP9761958 terminal block should be placed into the same opening and secured by tightening the screws with a Phillips screwdriver.

Step 8: The wires should be reattached to their corresponding terminals on the new terminal block.

Step 9: Your range should be reconstructed by reinstalling each component linked to the terminal block and securing the control panel with the screws that were previously removed.

Step 10: The range should be reconnected to the wall outlet and its proper operation should be verified.

It is important to note that these instructions should be utilized as general guidance and should always be utilized alongside the manufacturer's manual, if accessible.
