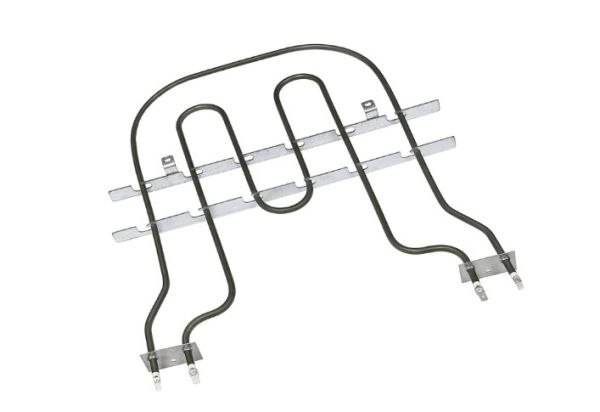

Whirlpool WP9760774 Range Broil Element

Special Price $107.62 Regular Price $193.50
In stock
Available Quantity:   295
SKU
WP9760774

Product Description

The Whirlpool WP9760774 Range Broil Element effectively produces broil heat through the use of a metal broil element that emits heat in the form of radiation. Intended to provide heat distribution, it helps to cook food evenly, brown meats, melt cheese and crisp foods to the required degree. It is located at the top of the oven cavity and starts working when broil function is selected to provide high heat for cooking. This component also focuses on refining the way heat is provided, cuts down on cooking time and further enhances the appearance of the food.
Manufacturer
✓ This Product Replaces: 9760774
https://www.hnkparts.com/media/catalog/product/w/p/wp9760774-69940.jpg

This Part Fits the Following Models (364)

KitchenAid KEBC167MSS03 Oven KitchenAid KEBC167MSS04 Oven KitchenAid KEBC167VSS01 Oven KitchenAid KEBC167VSS00 Oven KitchenAid KEBC167MSS01 Oven KitchenAid KEBC167MSS02 Oven KitchenAid KEBC167MSS00 Oven KitchenAid KEBC167VSS02 Oven KitchenAid KERS807SBL04 Oven KitchenAid KERS807SBL03 Oven KitchenAid KERS807SSS03 Oven KitchenAid KERS807SSS04 Oven KitchenAid KEBS278SWH02 Oven KitchenAid KEBS278SSS04 Oven KitchenAid KEBS278SWH00 Oven
Showing 1-15 of 364
Manufacturer Name: WHIRLPOOL
Product Number: WP9760774
OEM Part Number: WP9760774
Product Description: Elmnt-Brol

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:Whirlpool WP9760774 Range Broil Element
Your Rating
Customer Questions
What maintenance is required for the Whirlpool WP9760774 Broil Element?

Regularly inspect the range broil element for cracks or signs of burning. Wipe it gently with a damp cloth when cool, avoiding abrasive cleaners. Proper maintenance ensures even cooking and reduces risk of electrical hazards. Always disconnect power before cleaning.

What are common issues with the Whirlpool WP9760774 Broil Element?

  • Element fails to heat evenly.
  • Sparks or intermittent power issues.
  • Visible burn marks or blistering.
  • Clicking sounds during operation.

Installation Steps

Step1: Disconnect power to the range at the circuit breaker before starting the replacement.

Step2: Open the range door and remove the oven racks for easier access to the broil element.

Step3: Unscrew the mounting screws holding the old broil element to the top interior of the oven.

Step4: Carefully pull the element forward, disconnect the wire terminals, and attach them to the new element.

Step5: Secure the new broil element in place, reinstall the racks, restore power, and test the broil function.
