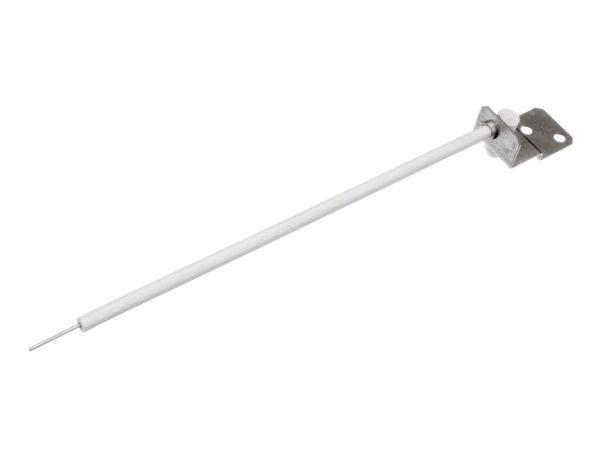

The Whirlpool WP74006072 is a range surface burner igniter, a critical component that initiates gas burner ignition on Whirlpool ranges. This igniter, which is close to the burner's base, gets electricity from the spark module. The spark module powers the igniter by sending current through it when the control knob is turned on. A little electrical arc is produced by this current between the burner cap and the igniter electrode. By acting as a spark, this arc starts combustion by igniting the gas escaping the burner aperture. A malfunctioning igniter can prevent the spark from reaching the gas, resulting in failed ignitions and an unsatisfactory cooking experience. The Whirlpool WP74006072 igniter can be used to replace a worn-out igniter, ensuring safe and dependable ignition that will allow you to cook more effectively and restore functionality to your gas range.
Step 1: Begin by having the appliance disconnected from the electrical outlet and having the gas supply disabled if it is linked to a gas stove.
Step 2: Extract the current Igniter-Surf component. It is secured to the main burner using two screws. These are unscrewed and then the old Igniter-Surf is elevated out of the appliance.
Step 3: Position the new Whirlpool WP74006072 IGNTR-SURF so that the center opening is aligned with the main burner tube.
Step 4: Fasten the new Igniter-Surf by having the two screws tightened that affix it to the main burner.
Step 5: Reconnect the appliance to the power source and have the gas activated if necessary.
Step 6: Verify the functionality of the new Igniter-Surf by having the stove turned on and having it confirmed that all burners ignite when engaged.
It is important to note that these instructions are served as general guidance and should always be followed alongside the manufacturer's manual, if one is available.
