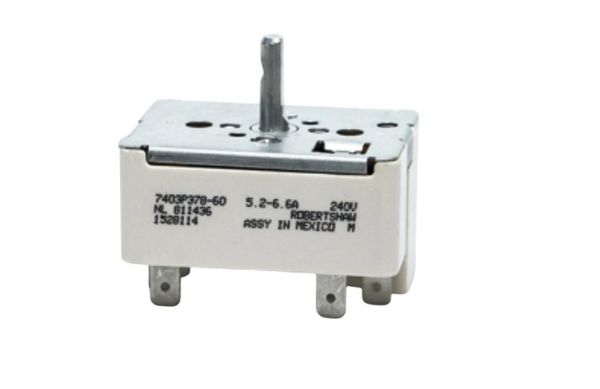

The Whirlpool WP74002328 is an essential component of your range's control panel. It is a knob or rocker switch that you may interact with directly. The switch sends a signal to your range's electrical control board when you turn or flip it. This signal informs the control board the burner or oven element you have selected. The control board may then use this information to manage the power to that particular element, giving you the ability to precisely change the temperature settings for the cooking zone you want. A correctly functioning indication switch is required if you want precise control over the cooking temperatures on your Whirlpool range. Without it, you wouldn't be able to select which element to utilize, making it impossible to cook on a range.
Step 1: The appliance is disconnected from the electrical outlet and the breaker is switched off.
Step 2: A flathead screwdriver is employed to take out the screws holding the top panel of the appliance and it is gently lifted away.
Step 3: The Whirlpool WP74002328 SWITCH-INDICATOR is identified and its location within the appliance is observed.
Step 4: A voltage tester is utilized to confirm that there is no current flowing through the appliance.
Step 5: With a Phillips head screwdriver, the screws that hold the switch-indicator are loosened and taken out.
Step 6: The wiring linked to the old switch-indicator is carefully detached.
Step 7: The old switch-indicator is gently extracted using the needle nose pliers.
Step 8: The new Whirlpool WP74002328 SWITCH-INDICATOR is placed and it is secured in position using the needle nose pliers.
Step 9: The wiring is reattached to the switch-indicator.
Step 10: The screws are reinserted to fasten the switch-indicator in place.
Step 11: The new switch-indicator is verified to ensure it operates correctly.
Step 12: The appliance is reconnected to the power supply and the breaker is turned back on.
Step 13: The top panel and the screws are reinstalled to secure it.
Step 14: The appliance is tested to confirm that all functions are working correctly.
Please remember, these instructions are served as a general reference and should always be utilized alongside the manufacturer's manual, if one is available.
