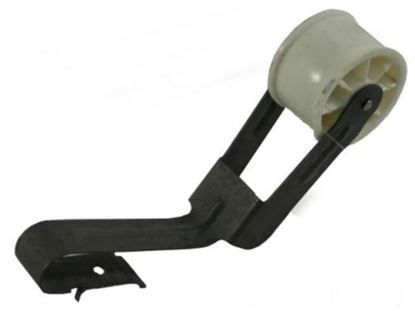

Whirlpool WP691366 Dryer Idler Pulley Assembly

Rating:
5 5 5
5 Reviews Add Your Review
Special Price $8.98 Regular Price $16.20
In stock
Available Quantity:   2115
SKU
WP691366

Product Description

The Whirlpool WP691366 Dryer Idler Pulley Assembly maintains tension on the dryer drum drive belt for smooth operation. It reduces belt slippage by providing consistent tension while guiding the belt around the drum. As the motor runs, the pulley spins freely, ensuring even rotation of the drum. This assembly helps prevent excessive wear on the belt, extending the dryer's lifespan. Its durable construction enhances performance, minimizing noise and improving efficiency for reliable drying results.
Add to Wish List
Manufacturer
✓ This Product Replaces: 691366, DE411, 239477, 337116, 337407, 337510, 3388345, 338946, 347034, 347226, 347277, 4319391, 688166, 3394332, 691366BULK
https://www.hnkparts.com/media/catalog/product/w/p/wp691366_whirlpool_hnkparts.jpg

This Part Fits the Following Models (1198)

KitchenAid KEYS700JT1 Dryer KitchenAid KEYS700LQ0 Dryer KitchenAid KEYS700LQ1 Dryer KitchenAid KEYS700LT0 Dryer KitchenAid KEYS700LT1 Dryer KitchenAid KEYS710JQ0 Dryer KitchenAid YKEYS710JQ0 Dryer KitchenAid KEYS700EZ1 Dryer KitchenAid KEYS700GQ0 Dryer KitchenAid KEYS700GT0 Dryer KitchenAid KEYS700GZ0 Dryer KitchenAid KEYS700JQ0 Dryer KitchenAid KEYS700JQ1 Dryer KitchenAid KEYS700JT0 Dryer Roper RGX5635EQ2 Dryer
Showing 1-15 of 1198
Manufacturer Name: WHIRLPOOL
Product Number: WP691366
OEM Part Number: WP691366
Product Description: Idler Pulley

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews 5
Write Your Own Review
You're reviewing:Whirlpool WP691366 Dryer Idler Pulley Assembly
Your Rating
FAQS
Customer Questions
No Questions

Installation Steps

Step 1: The dryer's power cord is gently disconnected from the wall socket and the gas valve is turned off (if applicable).

Step 2: The lint filter is taken out, then the top panel of your dryer is detached by unscrewing the screws that hold it to the rear wall.

Step 3: The door switch wires are firmly pulled on to detach them from the control board of the dryer.

Step 4: The drum is slightly advanced and the wires linked to the drum motor are disconnected.

Step 5: The belt is removed from the motor and idler pulley assembly, then the tensioner screw is loosened to take off the idler pulley assembly.

Step 6: The new WP691366 Whirlpool Dryer Idler Pulley Assembly is installed onto the bracket at the back of the dryer, making sure it is correctly aligned.

Step 7: The belt is reattached to both the motor and idler pulley and the tensioner screw is tightened.

Step 8: The wires are reconnected to the drum motor and door switch wires.

Step 9: The top panel of the dryer is reinstalled and secured with screws, then the lint filter is reinstalled and secured.

Step 10: The power cord is reconnected to the wall socket and the gas valve is switched on (if applicable).

Step 11: The dryer’s functionality is verified before any additional parts that were removed during the process are reinstalled.

It is important to note that these instructions are served as general guidance and should always be supplemented with the manufacturer's manual, if accessible.
