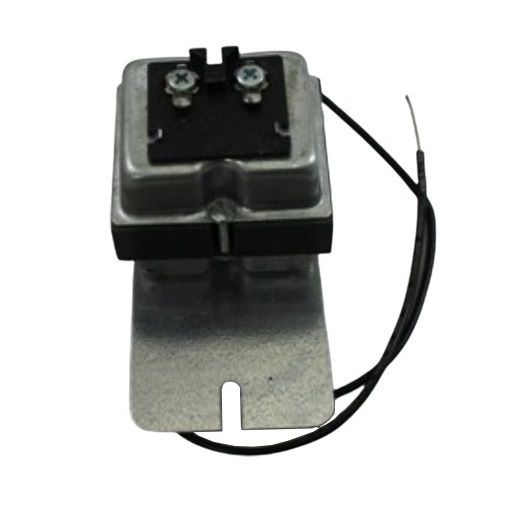

main product photo

Williams Furnace P024200 Transformer

Be the first to review this product
Special Price $66.31 Regular Price $73.68
In stock
Available Quantity:   1
SKU
P024200

Product Description

The Williams Furnace P024200 Transformer is an interior electrical element that transforms power that comes in to the line to a lower voltage needed by control circuits and electronic systems in appliances. It is primarily used to provide the parts, including the thermostat, safety regulator and control board, constant power levels. The transformer is fitted in the control compartment of the furnace and it is connected to the main power supply and wiring harness. It supports the steady distribution of electricity within the system, with the normal functioning of low-voltage circuits and ensures stable normal usage.
Add to Wish List
Manufacturer
Write Your Own Review
You're reviewing:Williams Furnace P024200 Transformer
Your Rating
FAQS
Customer Questions
What maintenance is required for the Williams Furnace P024200 Transformer?

Regularly inspect the transformer for dust buildup and signs of overheating. Ensure electrical connections are tight and free of corrosion. Clean the exterior with a dry cloth and avoid moisture contact. Proper maintenance prevents performance issues and ensures safe operation.

What are common issues with the Williams Furnace P024200 Transformer?

  • Overheating or burning smell during operation.
  • Inconsistent voltage output affecting furnace performance.
  • Loose or corroded connections causing intermittent faults.
  • Audible humming or buzzing noises indicating internal stress.

Installation Steps

Step1: Turn off power at breaker and confirm no voltage for safety.

Step2: Remove furnace access panel and locate existing transformer wiring carefully on furnace unit.

Step3: Label and disconnect low-voltage and line-voltage wires carefully.

Step4: Mount new transformer securely in same position following wiring diagram.

Step5: Reconnect wires per diagram ensuring tight connections to avoid faults.

Step6: Restore power and test furnace operation then observe operation.
