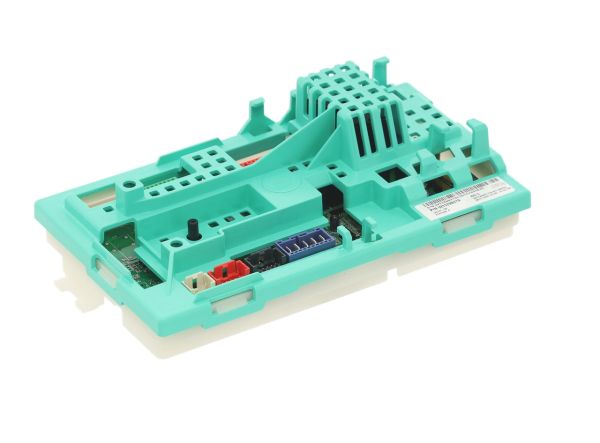

main product photo

Whirlpool W11777413 Washer Control Board

Be the first to review this product
Special Price $160.54 Regular Price $205.28
Out of stock
Available Quantity:   0
SKU
W11777413

Product Description

The Whirlpool W11777413 Washer Control Board is the electronic operating module that regulates the operational cycles and functions of the appliance. It processes the user inputs and sensor data to control wash functions including fill levels, agitation, spin speed, and cycle timing. The structure operates on the concept of processing the signals of the control panel and transmitting accurate commands to the motors, valves, and other subsystems. This board installs in the control housing of the washer during assembly or replacement services.
Add to Wish List
Manufacturer
Write Your Own Review
You're reviewing:Whirlpool W11777413 Washer Control Board
Your Rating
FAQS
Customer Questions
What maintenance is required for the Whirlpool W11777413 Control Board?

Inspect all wire connections for tightness and corrosion. Test washer functions to confirm proper signal transmission. Keep the area free of moisture and dust, and ensure the board is firmly mounted to prevent electrical disruptions.

What are common issues with the Whirlpool W11777413 Control Board?

  • Washer stopping mid-cycle.
  • Incorrect cycle settings.
  • Display errors or a frozen screen.
  • Motor not responding to controls.

Installation Steps

Step1: Disconnect the washer from the electrical supply.

Step2: Access the control panel by removing the top or rear screws.

Step3: Locate the control board and disconnect the attached wires.

Step4: Install the new control board and reconnect all harnesses.

Step5: Reassemble the panel.

Step6: Restore power and verify washer functions operate normally.
