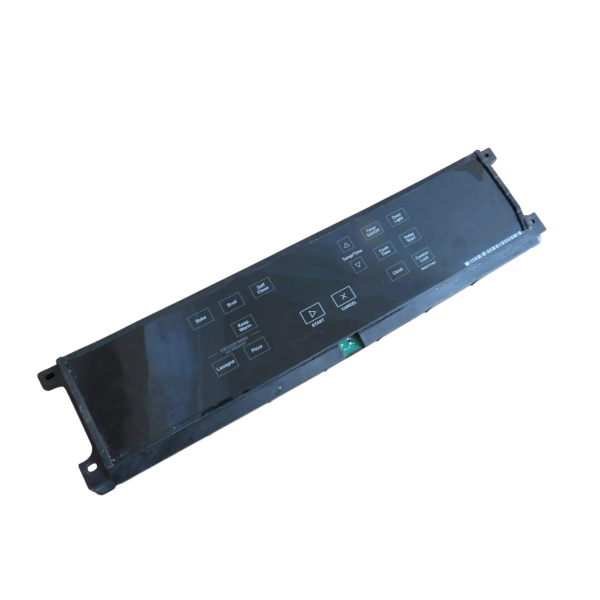

main product photo

Whirlpool W11747115 Control Board

Be the first to review this product
Special Price $244.59 Regular Price $280.83
In stock
Available Quantity:   51
SKU
W11747115

Product Description

The Whirlpool W11747115 Range Control Board regulates the cooking process in your oven to maintain the temperature accurately and consistently. It acts as the command centre of the appliance and reads user settings and sensor responses to control the bake, broil and timing functions. This board makes it easy to focus the power on heating elements and manage the display interface making its operations smooth and efficient.
Add to Wish List
Manufacturer
Write Your Own Review
You're reviewing:Whirlpool W11747115 Control Board
Your Rating
FAQS
Customer Questions
What maintenance is required for the Whirlpool W11747115 Control Board?

Confirm control selections appear correctly on the display after pressing buttons. Keep the control housing free from grease that may interfere with signal transmission. Verify cooking functions respond immediately and settings remain stable throughout extended cooking preparation sessions.

What are common issues with the Whirlpool W11747115 Control Board?

  • Display not updating selections.
  • Cooking modes switching unexpectedly.
  • Temperature settings not registering.
  • Timer function stopping early.

Installation Steps

Step1: Disconnect appliance power at breaker to ensure safety.

Step2: Remove rear or top panel to access control housing.

Step3: Label and unplug all wiring connectors carefully.

Step4: Unscrew and remove faulty control board from bracket.

Step5: Install new board and reconnect wiring firmly and correctly.

Step6: Reassemble panel restore power and test full operation.
