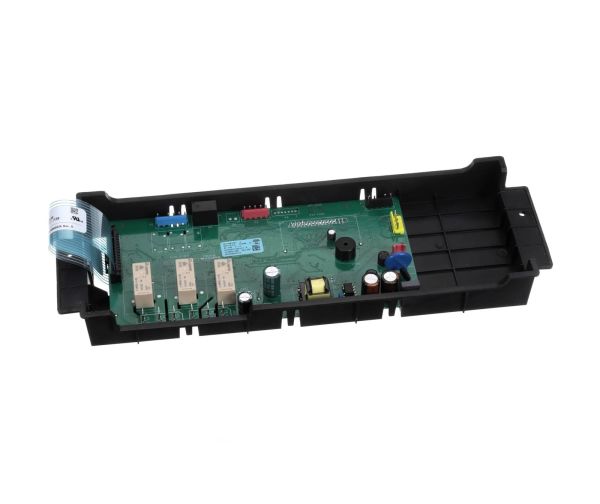

main product photo

Whirlpool W11747105 Range-Oven Control Board

Be the first to review this product
Special Price $241.22 Regular Price $294.87
In stock
Available Quantity:   316
SKU
W11747105

Product Description

The Whirlpool W11747105 Range Control Board controls heating and cooking in the oven to ensure that the temperature is properly controlled and the oven works properly. Being the main electronic component, it receives user controls and sensor information to control bake, broil and timer functions. It synchronizes the signals to heating elements and display components, which makes the range work efficiently and safely.
Add to Wish List
Manufacturer
Write Your Own Review
You're reviewing:Whirlpool W11747105 Range-Oven Control Board
Your Rating
FAQS
Customer Questions
What maintenance is required for the Whirlpool W11747105 Control Board?

Keep the control board area clean and dry. Wipe gently with a soft cloth to remove dust or spills. Verify all wiring connections are secure and that the board responds correctly to inputs for proper oven and burner operation.

What are common issues with the Whirlpool W11747105 Control Board?

  • Oven not heating.
  • Burners failing to ignite.
  • Buttons or touchpad unresponsive.
  • Error codes displayed.

Installation Steps

Step1: Turn off power to the range at the circuit breaker.

Step2: Open the control panel to access the board.

Step3: Disconnect all wiring connectors from the old control board.

Step4: Remove mounting screws and take out the faulty board.

Step5: Install the new control board and reconnect all wires securely.

Step6: Reassemble the panel, restore power, and test oven functions.
