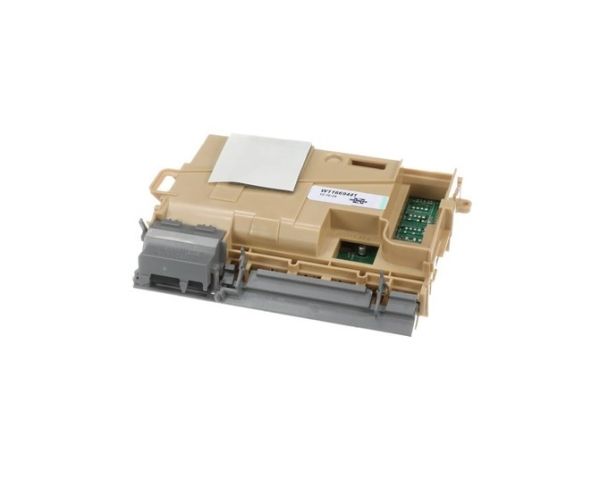

main product photo

Whirlpool W11683480 Dishwasher Control Unit Y2G N81A-08AFDN 12K10-TDFV

Rating:
5 5 1
1 Review Add Your Review
Special Price $209.77 Regular Price $230.43
In stock
Available Quantity:   698
SKU
W11683480

Product Description

The Whirlpool W11683480 Dishwasher Control Unit processes input from sensors and user commands to regulate wash cycles, water temperature and drying functions. It is a microprocessor installed in the control panel of the dishwasher that sends power and time to the parts of the system such as the pump, heater and spray arms.
Add to Wish List
Manufacturer
Write Your Own Review
You're reviewing:Whirlpool W11683480 Dishwasher Control Unit Y2G N81A-08AFDN 12K10-TDFV
Your Rating
FAQS
Customer Questions
What maintenance is required for the Whirlpool W11683480 Control Unit?

Ensure all wiring connectors remain securely attached. Keep the board area dry and clear of debris. Confirm that program selections register correctly. Monitor unit response during operation to verify consistent performance and accurate cycle execution.

What are common issues with the Whirlpool W11683480 Control Unit?

  • Cycles not starting as selected.
  • operations responding incorrectly.
  • Program settings ignored.
  • Appliance stopping mid-cycle.

Installation Steps

Step1: Disconnect dishwasher from power supply before installation.

Step2: Remove inner door panel to access control unit compartment.

Step3: Label and detach all wiring connectors from old module.

Step4: Unscrew and remove faulty control unit carefully.

Step5: Install new unit and reconnect all wiring securely.

Step6: Reassemble panel, restore power, and run a test cycle.
