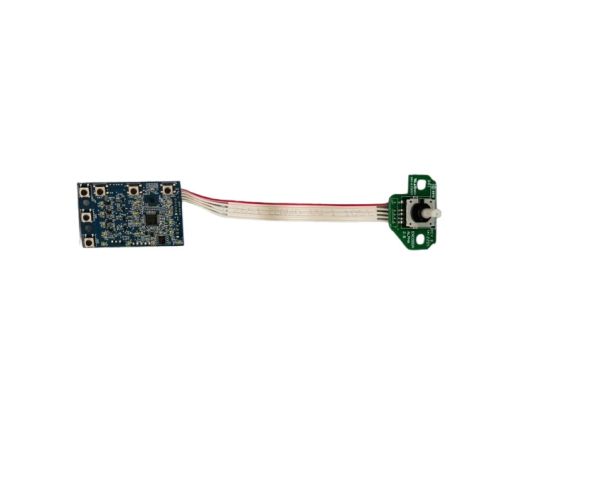

main product photo

Whirlpool W11627516 Washer Encoder Control Board Assembly

Be the first to review this product
Special Price $204.37 Regular Price $220.10
In stock
Available Quantity:   167
SKU
W11627516

Product Description

The Whirlpool W11627516 Washer Encoder Control Board Assembly controls the motor speed and rotation of the washing machine for proper functioning. It functions through the translation of mechanical movement into electrical signals to control the cycles of the machine. It efficiently controls the washer’s motor operations and its energy consumption and efficiency. It also enables the efficient running of the washing machine and enhances its durability.
Add to Wish List
Washing Machine Parts, Control Boards,
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/1/w11627516.jpg

This Part Fits the Following Models (1)

Write Your Own Review
You're reviewing:Whirlpool W11627516 Washer Encoder Control Board Assembly
Your Rating
FAQS
Customer Questions
What maintenance is required for the Whirlpool W11627516 Control Board Assembly?

Regularly inspect the control board for loose connections or signs of moisture. Keep the area clean and dry to prevent electrical issues. Avoid touching circuitry while the washer is powered. Ensure proper installation and handle with care during servicing.

What are common issues with the Whirlpool W11627516 Control Board Assembly?

  • Washer not starting or stopping mid-cycle.
  • Inaccurate cycle selections or error codes.
  • Intermittent or no response to control inputs.
  • Board overheating or visible burn marks.

Installation Steps

Step1: Power off washer and unplug from mains to avoid electric shock.

Step2: Remove rear access panel using screwdriver and keep screws safe.

Step3: Locate encoder control board near control housing assembly inside machine.

Step4: Carefully disconnect wiring harness connectors noting positions before removal.

Step5: Unscrew mounting screws and remove old encoder board gently.

Step6: Install new board align connectors and secure screws firmly in place.

Step7: Reconnect wiring reassemble panel restore power and test washer cycle.
