main product photo

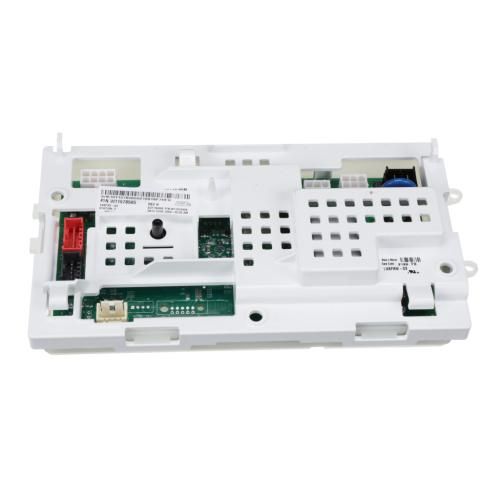

Whirlpool W11603810 Washer Electronic Main Control Board

Rating:
5 5 3
3 Reviews Add Your Review
Special Price $213.37 Regular Price $224.91
In stock
Available Quantity:   4023
SKU
W11603810

Product Description

The Whirlpool W11603810 Washer Electronic Main Control Board controls all the electronic operations and also manages the wash cycle to make proper functioning of the machine. The working process includes reading the user settings, analyzing the sensors, and controlling the speed of the motors. This control board offers better control of the wash quality and power consumption, increasing wash quality and decreasing damage to other parts.
Add to Wish List
Washing Machine Parts, Control Boards,
Manufacturer
Write Your Own Review
You're reviewing:Whirlpool W11603810 Washer Electronic Main Control Board
Your Rating
FAQS
Customer Questions
What maintenance is required for the Whirlpool W11603810 Electronic Main Control Board?

Keep the control board area dry and free from detergent spills or moisture that could cause shorts, and wipe surrounding surfaces with a dry cloth. Inspect wiring harnesses for tight connections during routine service. Use a surge protector to help protect sensitive electronics from voltage spikes. Always disconnect power before servicing.

What are common issues with the Whirlpool W11603810 Electronic Main Control Board?

  • Cycles fail to start.
  • Error codes display incorrectly.
  • Buttons or the display are unresponsive.
  • Settings do not save.

Installation Steps

Step1: Disconnect the washer from electrical power.

Step2: Remove the top panel to access the control housing.

Step3: Label and disconnect all wire harnesses from the existing board.

Step4: Remove mounting screws and install the new control board.

Step5: Reconnect wiring, reassemble the panel, and run a diagnostic test.
