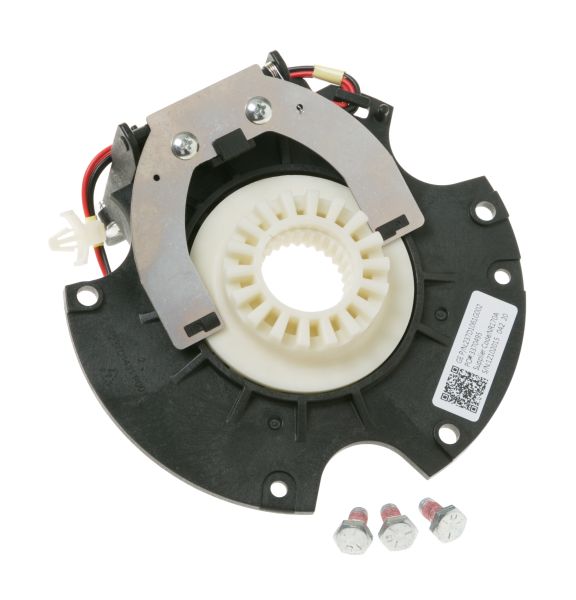

The General Electric WH49X24834 Washing Machine Shifter Mode Service Assembly Kit of the washer’s transmission system makes it run smoothly. This is done by switching on and off the motor and gears to help the tub change modes as required. Also, it has an improved design that helps in the synchronization process, minimizing the damage to the internal parts. This works more efficiently to provide better quality wash and efficient cycles with the help of this kit.
Step 1: Start by disconnecting your washer from the power source and shutting off the water supply.
Step 2: Unlink the hot and cold water hoses from the back of the washer, then tilt the appliance backward to gain access underneath.
Step 3: Remove the two screws located at the base of the washer cabinet that secure the lower front panel to the washing machine frame.
Step 4: Take off the lower front panel by pulling it away from the washing machine's frame.
Step 5: Disconnect the wiring harness that runs between the control panel and the drive motor.
Step 6: Extract the screws fastening the motor assembly to the washer frame.
Step 7: Gently lift the motor assembly out of the appliance and place it aside.
Step 8: Take out the mounting screws from the shifter mode SVC assy kit, then pull the unit away from the washer's body.
Step 9: Position the new shifter mode SVC assy kit by inserting it into the holes in the washer body, then fasten it using the mounting screws.
Step 10: Lower the motor assembly back into the appliance, ensuring the wiring harness is connected to the motor during this step.
Step 11: Fasten the motor assembly to the washing machine frame using the screws previously removed.
Step 12: Reconnect the wiring harness linking the control panel to the motor.
Step 13: Reinstall the lower front panel by aligning the holes in the part with those in the washing machine frame, then reinserting and securely tightening the two screws at the bottom of the washer cabinet.
Step 14: Reconnect the water supply hoses for both hot and cold water, then plug the cord back into the electrical outlet.
Step 15: Verify the functionality of the replacement shifter mode SVC assy kit by running a cycle on your washer.
Congratulations - the GE WH49X24834 shifter mode SVC assy kit has been successfully replaced!
Please remember that these instructions are served as general guidance and should always be referenced alongside the manufacturer's manual when available.
