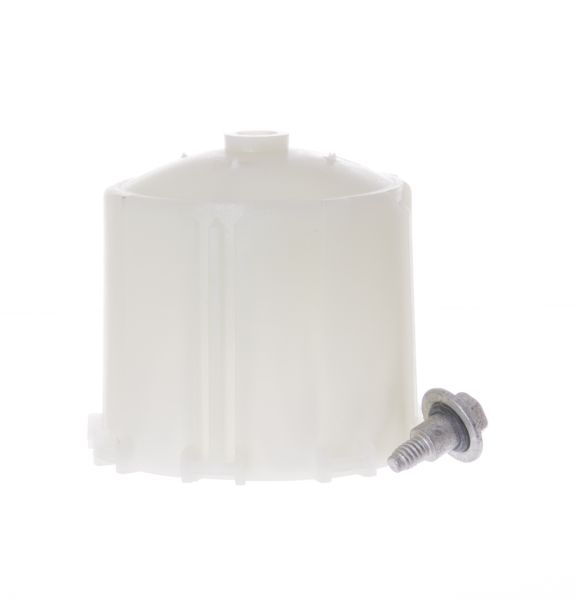

General Electric WH49X10042 Washer Agitator Coupling Kit

Special Price $6.50 Regular Price $23.99
In stock
Available Quantity:   231
SKU
WH49X10042

Product Description

AGITATOR COUPLING KIT
Agitator,
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/h/wh49x10042_general-electric_hnkparts.png

This Part Fits the Following Models (1169)

GE GNSR2090T9WW Washer GE WCXR1070A0WW Washer GE WCXR1070A0AA Washer GE WCXR1070A2AA Washer GE WCXR1070A1AA Washer GE WCXR1070A1WW Washer GE WKSE5260E1WW Washer GE WKSE5260E6WW Washer GE WKSE6280B1WW Washer GE WKSE6280B2WW Washer GE WKSE6280B3WW Washer GE WKSR2100T2AA Washer GE WKSR2100T5WW Washer GE WKSR2100T3WW Washer GE WKSR2100T5AA Washer
Showing 1-15 of 1169
Manufacturer Name: GENERAL ELECTRIC
Product Number: WH49X10042
OEM Part Number: WH49X10042
Product Description: Agitator Coupling Kit

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:General Electric WH49X10042 Washer Agitator Coupling Kit
Your Rating
Customer Questions
No Questions
Please, mind that only logged in users can submit questions

Installation Steps

Step 1: The washer should be disconnected from the electrical outlet.

Step 2: Subsequently, the two clips that secure the end of the drive tube to the motor should be detached.

Step 3: The top panel of the washer should be carefully taken off, then the belt should be unlooped from the motor pulley.

Step 4: The water hose should be unfastened from the inlet valve and the two screws that hold the inlet valve to the cabinet should be taken out.

Step 5: The inlet valve should be elevated from the washer to access the coupling.

Step 6: The WH49X10042 coupling can be found beneath the inlet valve.

Step 7: The coupling should be carefully lifted from the motor shaft, then the three screws that are fastening it to the cabinet should be unscrewed.

Step 8: The new WH49X10042 coupling should be positioned by securing it to the motor shaft, reattaching the three screws, and reinstalling the inlet valve.

Step 9: The belt should be re-looped onto the motor pulley, then the clips that fasten the drive tube to the motor should be reconnected.

Step 10: The water hose should be reattached to the inlet valve and the washer top panel should be reinstalled.

Step 11: Finally, the washer should be plugged back into the electrical outlet, and you're finished!

Please note that these instructions serve as general guidance and should always be utilized alongside the manufacturer's manual, if available.
