Installation Steps
Step 1: The appliance is disconnected from the electrical outlet and the water supply to the unit is turned off.
Step 2: The appliance is shifted away from the wall and the access panel located at the rear is taken off.
Step 3: A flat-blade screwdriver is employed to take out the screws securing the existing hose drain inlet.
Step 4: Pliers are utilized to remove the hoses from the existing hose drain inlet.
Step 5: A ratchet along with a socket set is applied to unscrew and take off the old hose drain inlet from the appliance.

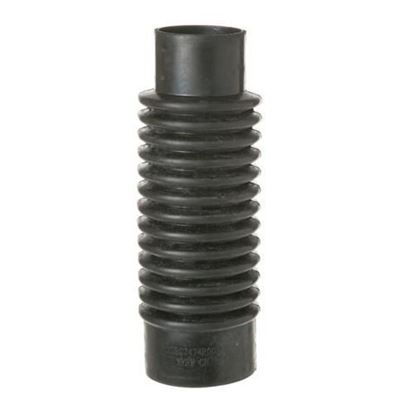

Step 6: The new hose drain inlet (GE WH41X10280) is inserted into position, ensuring it is firmly secured.
Step 7: The hoses are reconnected to the new hose drain inlet with pliers, verifying they are tightened.
Step 8: The access panel at the back of the appliance is refitted, and the appliance is repositioned back into place.
Step 9: The water supply is reactivated and the appliance is reconnected to the electrical outlet.
Step 10: The functionality of the new hose drain inlet is verified to ensure it operates correctly.
Please remember that these instructions are served as general guidance and should always be followed in conjunction with the manufacturer's manual, if one is available.
