main product photo

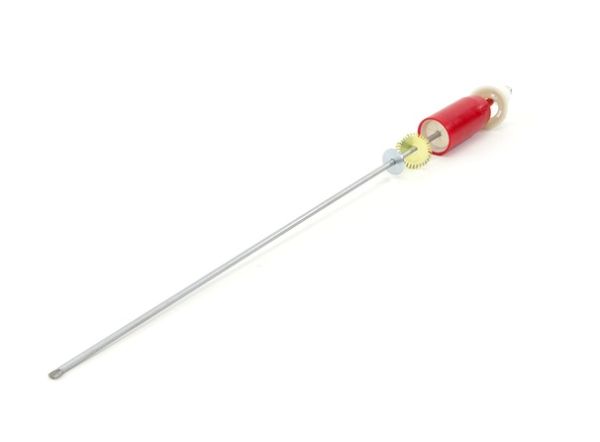

General Electric WH16X10159 Washer Rear Rod & Spring Assembly

Be the first to review this product
Special Price $69.05 Regular Price $86.03
In stock
Available Quantity:   14
SKU
WH16X10159

Product Description

The General Electric WH16X10159 Washer Rear Rod & Spring Assembly provides the tub with the ability to move in a controlled manner during the cycles. It is used to attach the back of the wash tub to the cabinet and also to absorb the movement caused by spinning and agitation. The assembly is a rod and spring setup allowing a vertical movement and damping vibration. It is mounted on the back of the tub and cabinet on special mounting points of the appliance.
Add to Wish List
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/h/wh16x10159-44804.jpg

This Part Fits the Following Models (104)

Hotpoint HTAP1200D1WW Washer Hotpoint HTWP1200D1WW Washer Hotpoint HTWP1200D0WW Washer Hotpoint HTAP1100F0WW Washer Hotpoint HTWP1400F2WW Washer Hotpoint HTWP1400F1WW Washer Hotpoint HTWP1400F0WW Washer Hotpoint MTAP1200D1WW Washer Hotpoint MTAP1200D0WW Washer Hotpoint MTAP1100F2WW Washer Hotpoint MTAP1100F1WW Washer Hotpoint HSWP1000M2WW Washer Hotpoint HSWP1000M4WW Washer GE GTAN5250D0WW Washer GE GTAN5550D1WW Washer
Showing 1-15 of 104
Manufacturer Name: GENERAL ELECTRIC
Product Number: WH16X10159
OEM Part Number: WH16X10159
Product Description: Rod & Spring Assembly

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:General Electric WH16X10159 Washer Rear Rod & Spring Assembly
Your Rating
FAQS
Customer Questions
No Questions

Installation Steps

Step 1: The washing machine should be disconnected from the power source and the water supply valves should be turned off.

Step 2: The screws that hold the back panel in place should be taken out and the panel should be detached from the washing machine.

Step 3: The current suspension rod located at the rear of the washer should be identified, then a socket wrench should be utilized to loosen the locking nut securing the suspension rod.

Step 4: The suspension rod should be extracted from the washer and it should be disposed of.

Step 5: The new suspension rod should be positioned into the washer at the rear. The slots or hooks on the suspension rod should be ensured aligned with the mounting brackets inside the washer.

Step 6: The new suspension rod should be fastened by reattaching the locking nut using the socket wrench.

Step 7: The back panel should be reinstalled onto the washer and it should be fastened with the screws.

Step 8: The washing machine should be reconnected to the electrical outlet and the water supply valves should be activated.

Your GE suspension rod, rear mount should now be replaced and your washer should be ready to go!

Please remember, these instructions should be served as general guidance and should always be used alongside the manufacturer's manual, if available.
