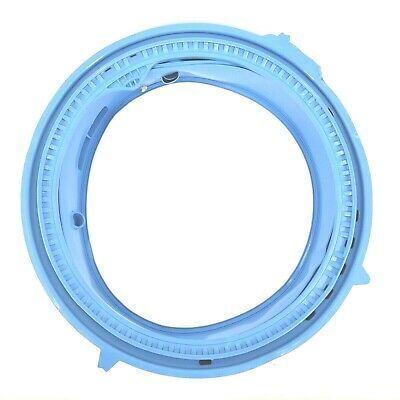

The General Electric WH05X29521 Washer Door Gasket is designed to be used around the washer door to prevent any water leakage it operates by sealing the washing process by making sure that the water does not leak out of the drum during the wash cycle. Constructed from high density, the gasket ensures that the system performs efficiently by preventing leakage while at the same time eliminating the possibility of mold and mildew formation.
Creates a watertight seal between the washer door and wash tub during operation. The General Electric WH05X29521 Washer Door Gasket is a flexible sealing component designed for compatible GE front-load washers. Positioned around the tub opening, it forms the sealing connection that helps contain water within the wash chamber throughout the wash cycle. Its flexible construction accommodates normal door movement while maintaining separation between the interior wash area and exterior cabinet.
Sealing Profile:
The gasket uses a molded, flexible profile shaped to follow the washer's front tub opening. Its contoured surface provides consistent contact around the door perimeter while allowing compression when the door closes. The profile also accommodates normal movement and vibration during washer operation without requiring a rigid sealing structure.
Tub Opening Interface:
The gasket is fitted around the front tub opening and establishes the sealing boundary between the wash chamber and the exterior cabinet. Its positioning keeps the sealing surface aligned with the door contact area, while the flexible material allows the gasket to maintain its shape as the door opens, closes, and remains secured during a wash cycle.
Replacement Guidelines:
Replacing the Washer Door Gasket is appropriate if it is cracked, torn, damaged, excessively worn, or otherwise deteriorated. Verify part number WH05X29521 and the complete washer model number before replacement. Replace the gasket if deterioration affects sealing, door closure, or normal washer operation.
Common Failure Symptoms:
Visible cracks, splits, or tears developing in the gasket material.
Water leaking from the door area during washer operation.
Gasket becoming hardened, deformed, or excessively worn.
Damaged sealing surfaces around the washer door opening.
Gasket pulling away from its intended position or becoming loose.
Door area failing to maintain a proper seal during operation.
Moisture escaping around the door instead of remaining contained within the washer.
Equipment Compatibility:
The WH05X29521 Washer Door Gasket is designed for select General Electric front-load washers. Verify the appliance model number and applicable parts documentation before ordering to ensure the gasket matches the washer's door and tub configuration.
What maintenance is required for the General Electric WH05X29521 Door Gasket?
Regularly wipe the washer door gasket with a soft cloth to remove detergent residue, lint, and moisture buildup. Check the folds of the gasket for trapped debris that can cause odors or leaks. Leave the washer door slightly open after cycles to improve airflow. Inspect the gasket periodically for cracks or signs of wear.
What are common issues with the General Electric WH05X29521 Door Gasket?
Mold and moisture growth inside folds.
Leaks during washing cycles.
Odors from trapped water and detergent residue.
Difficulty sealing the washer door properly.
Why does a front-load washer use a flexible door gasket?
A flexible gasket conforms to the door opening and accommodates normal movement during washer operation.
Which areas does the WH05X29521 gasket separate?
It separates the interior wash chamber from the exterior cabinet around the tub opening.
How does the gasket's molded shape support sealing?
Its molded profile follows the tub opening and creates a continuous contact surface around the door.
What can affect the condition of a washer door gasket?
Repeated use, stiffness, flattening, surface wear, deformation, and physical damage can affect the gasket's condition.
Why must a door gasket match the washer model?
Gaskets are designed for specific door openings, dimensions, and sealing profiles, so similar-looking gaskets may not fit correctly.
Installation Steps
Step1: Unplug the washer to ensure safety.
Step2: Open the door and remove the retaining clamp from the old gasket.
Step3: Remove the old gasket away from the drum opening.
Step4: Fit the new gasket evenly around the drum edge.
Step5: Secure it using the retaining clamp.
Step6: Check that the gasket sits evenly without twists.
Step7: Plug in the washer and run a short cycle to check for leaks.
