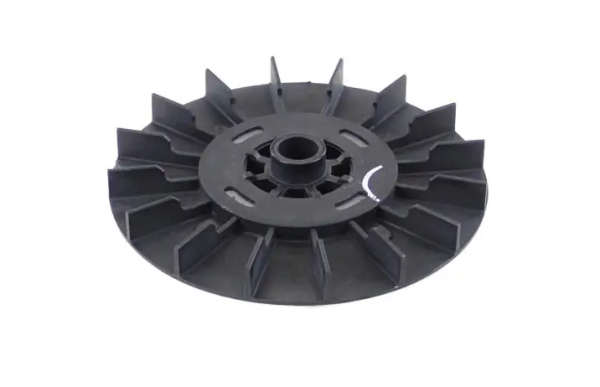

General Electric WH03X32217 Washer 1/2 HP Motor Pulley & Nut

Rating:
5 5 1
1 Review Add Your Review
Special Price $15.26 Regular Price $16.02
In stock
Available Quantity:   29
SKU
WH03X32217

Product Description

The General Electric WH03X32217 1/2 HP Washer Motor Pulley and Nut are used to transmit power from the motor to the drum to facilitate the basic functions of the washer pulley links the motor and the drum. The motor’s rotational power is then transferred to the drum through a belt to start the washing process. Pulleys of different sizes change the speed of transmission depending on the stage such as high speed for washing and moderate slowing down for spinning. This ensures that the motor and the drum are in harmony in their operations.
Add to Wish List
Motors,
Manufacturer
✓ This Product Replaces: WH49X25377, WH07X24182
https://www.hnkparts.com/media/catalog/product/w/h/wh03x32217_general-electric_hnkparts.png

This Part Fits the Following Models (6)

Product Overview:

Transfers rotational movement from the washer motor to the belt-driven system through the motor drive connection. The General Electric WH03X32217 Washer 1/2 HP Motor Pulley & Nut provides the mounting point where motor rotation is connected with the belt assembly. Positioned within the washer motor drive area, the pulley and nut assembly supports the mechanical connection required for washer operation.

Belt Engagement:

The pulley provides the rotating surface that interfaces with the washer drive belt. As the motor operates, the pulley rotation allows movement to be transferred through the belt connection to the associated drive components. The pulley groove design supports the belt’s contact with the assembly during normal washer operation.

Mounting and Retention Role:

The retaining nut secures the pulley at its position on the motor assembly, maintaining the connection between the pulley and the motor drive shaft. The relationship between the pulley, mounting area, and retaining hardware allows the assembly to remain positioned during repeated washer cycles.

Replacement Guidelines:

Replacement of the General Electric WH03X32217 Washer 1/2 HP Motor Pulley & Nut is necessary when cracks, deformation, excessive wear, damaged threads, looseness, or other deterioration affects its intended power-transfer function. Inspect the pulley, nut, mounting connection, and related drive areas for conditions that could affect rotational movement or belt engagement. Replace the component when it can no longer maintain its intended function within the washer drive assembly.

Common Signs of Wear:

Worn or damaged pulley grooves

Belt slipping during washer operation

Loose pulley movement on the motor assembly

Damaged or deteriorated retaining nut

Deformation around the mounting area

Unusual noise from the belt-drive area

Equipment Compatibility:

The General Electric washer configuration should match the specified 1/2 HP motor pulley and nut design, motor mounting arrangement, drive system, and applicable manufacturer parts documentation for WH03X32217. Confirm the complete washer model and existing pulley configuration to ensure the replacement matches the intended washer drive assembly.

Reviews 1
Write Your Own Review
You're reviewing:General Electric WH03X32217 Washer 1/2 HP Motor Pulley & Nut
Your Rating
FAQS
Customer Questions
What maintenance is required for the General Electric WH03X32217 Motor Pulley & Nut?

Keep the pulley clean and free from debris. Check that the nut is tight and spins freely on the shaft. Proper maintenance ensures smooth drum operation and correct torque transfer during spin cycles.

What are common issues with the General Electric WH03X32217 Motor Pulley & Nut?

  • Pulley slipping during spin cycles.
  • Nut loosening under vibration.
  • Pulley wobbles on the shaft.
  • Drum not spinning evenly.

What is General Electric WH03X32217 Washer 1/2 HP Motor Pulley & Nut?

General Electric WH03X32217 Washer 1/2 HP Motor Pulley & Nut is a washer drive component that connects motor rotation with the belt-driven mechanism.

What is the role of a motor pulley in a washer?

A motor pulley provides the rotating connection point for the drive belt, allowing motor movement to be transferred to the connected washer drive system.

How is a washer motor pulley different from a washer drive belt?

A motor pulley is the rotating component attached to the motor, while the drive belt is the flexible component that transfers movement between connected parts.

What information helps identify the correct washer motor pulley assembly?

The washer model number, existing pulley details, and manufacturer part information should be checked to identify the correct assembly.

Why does a motor pulley include retaining hardware?

The retaining hardware keeps the pulley secured in its intended position on the motor assembly, allowing the pulley to maintain its connection during washer operation.

Installation Steps

Step1: Unplug the washer to prevent electrical shock.

Step2: Remove the washer cabinet or access panel to remove the motor.

Step3: Loosen and remove the old pulley and nut from the motor shaft.

Step4: Align the new motor pulley onto the shaft and secure it with the nut.

Step5: Ensure the pulley spins freely without wobble.

Step6: Restore power, and run a test cycle to verify proper operation.
