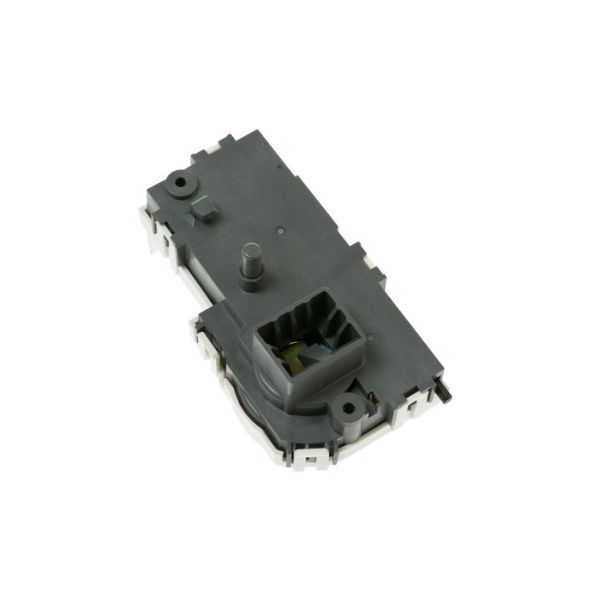

The General Electric WH01X29528 Washer Door Lock is designed to lock the door during the wash cycle so as not to be opened when the washer is in operation. When the door is closed, a latch triggers an electrical system that secures the door, so that no accidents such as spilling of liquids occur the benefits of this lock include increased security and protection from water leakage. Also helps avoid interruption of the washing process, which in turn offers a better system.
Step 1: The washing machine is disconnected from its electrical outlet. If the unit is positioned near a wall, it is shifted away to access the rear.
Step 2: The six screws located at the upper section of the control panel and one screw situated by the door lock are taken out. The control panel is elevated and any cables attached to it are detached.
Step 3: The two screws securing the door lock are extracted and any wiring connected to the back of the lock is disconnected.
Step 4: The new GE WH01X29528 Door Lock is inserted into the designated slot and it is fastened using the two screws.
Step 5: The wiring is connected to the back of the lock and the control panel is reattached.
Step 6: The seventh screw near the door lock is installed and the six screws at the top of the control panel are re-secured.
Step 7: The washing machine is reconnected to its electrical outlet and the functionality of the new GE WH01X29528 Door Lock is verified.
It is important to note that these instructions are served as general guidance and should always be utilized alongside the manufacturer's manual, if it is available.
