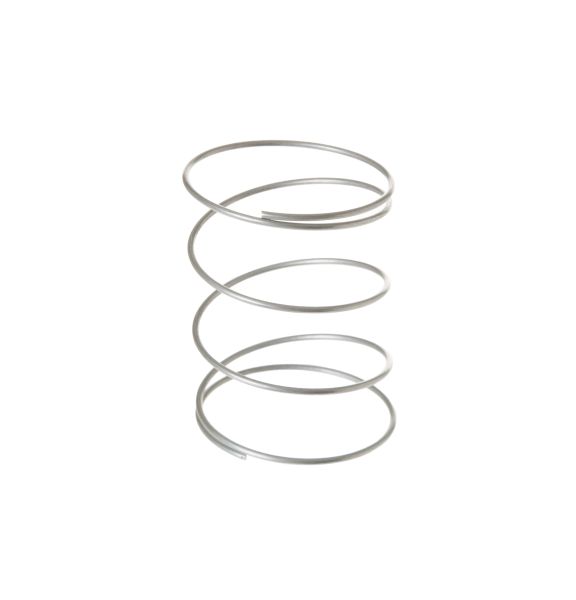

General Electric WH01X24434 Washer Spring Clutch

Special Price $5.40 Regular Price $8.29
In stock
Available Quantity:   30
SKU
WH01X24434

Product Description

SPRING CLUTCH
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/h/wh01x24434_general-electric_hnkparts.png

This Part Fits the Following Models (110)

GE PTW600BPR0DG Washer GE PTW600BSR0WS Washer GE GTW220ACK7WW Washer GE GTW335ASN2WW Washer GE GTW465ASN2WW Washer GE GTW490ACJ6WW Washer GE GTW500ASN1WS Washer GE GTW540ASP0WS Washer GE GTW540ASP1WS Washer GE GTW720BPN1DG Washer GE GTW720BSN1WS Washer GE GTW725BPN1DG Washer GE GTW840CPN1DG Washer GE GTW840CSN1WS Washer GE GTW845CPN1DG Washer
Showing 1-15 of 110
Manufacturer Name: GENERAL ELECTRIC
Product Number: WH01X24434
OEM Part Number: WH01X24434
Product Description: Spring Clutch

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:General Electric WH01X24434 Washer Spring Clutch
Your Rating
Customer Questions
No Questions

Installation Steps

Step 1: The power supply to the washer is disconnected and the water inlet from the washer is detached by beginning.

Step 2: The washer is shifted away from the wall to gain clear access to the rear of the unit.

Step 3: The rear plate or access panel is detached, ensuring that none of the screws are damaged or misplaced.

Step 4: The drum belt is taken off by loosening the tensioner and then removing the belt.

Step 5: The spring clutch is situated on the rear side of the transmission, beneath the drive pulley.

Step 6: The old clutch and spring are gently extracted, ensuring that neither is bent or harmed in the process.

Step 7: The new spring clutch and spring are positioned onto the back of the transmission and fastened securely.

Step 8: The drive belt is reattached to the washer and the tension is adjusted as per the guidelines.

Step 9: The rear panel is reinstalled and fastened using the screws.

Step 10: The power supply and water inlet are reconnected before a test cycle is executed to verify that the spring clutch is operating properly.

Please note, these instructions are served as general guidance and should always be utilized alongside the manufacturer's manual, if available.
