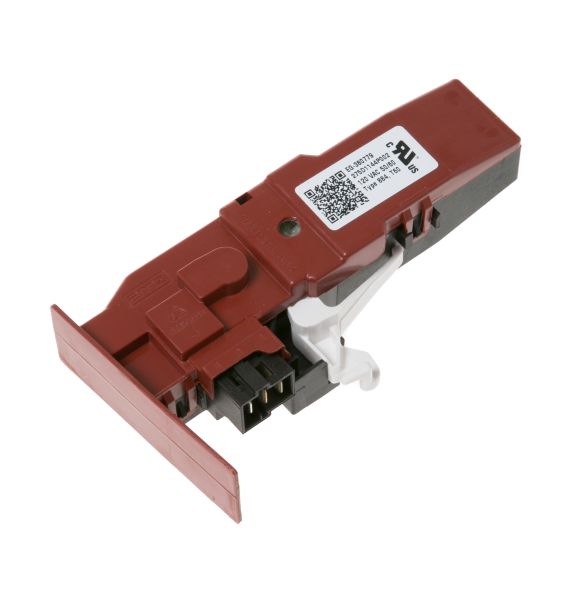

General Electric WH01X23494 Washer Door Lock Module

Rating:
5 5 1
1 Review Add Your Review
Special Price $36.41 Regular Price $53.10
In stock
Available Quantity:   25
SKU
WH01X23494

Product Description

The General Electric WH01X23494 Washer Door Lock Module is used to lock the door of the washer during certain cycles. It works by triggering a lock switch whenever the door is closed, and this will enable the control system to open the water inlet valve to begin the washing cycle. This lock not only avoids any accidental openings but also safety is maintained from potential during the operation, and washing cycles are not interrupted, hence increasing the durability of the appliance and the efficiency of the performance.
Add to Wish List
Washing Machine Parts, Door Assembly,
Manufacturer
✓ This Product Replaces: WH01X10752
https://www.hnkparts.com/media/catalog/product/w/h/wh01x23494_general-electric_hnkparts.png

This Part Fits the Following Models (12)

Manufacturer Name: GENERAL ELECTRIC
Product Number: WH01X23494
OEM Part Number: WH01X23494
Product Description: Door Lock Module

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews 1
Write Your Own Review
You're reviewing:General Electric WH01X23494 Washer Door Lock Module
Your Rating
FAQS
Customer Questions
What maintenance is required for the General Electric WH01X23494 Door Lock Module?

Close the door firmly and verify the latch engages before starting a cycle. Keep the latch opening clear so the locking mechanism can move freely. Check alignment between the door and frame to ensure the lock engages when a cycle begins.

What are common issues with the General Electric WH01X23494 Door Lock Module?

  • Door not locking at the start.
  • Lock signal not detected.
  • Door remaining locked after cycle.
  • System pausing during operation.

Installation Steps

Step1: Unplug the washer to prevent electrical shock.

Step2: Open the washer door and remove the front panel screws.

Step3: Carefully pull the front panel forward to access the lock module.

Step4: Disconnect the wiring harness from the old door lock.

Step5: Install the new lock module and reconnect the wires securely.

Step6: Reattach the front panel, restore power, and test door locking.
