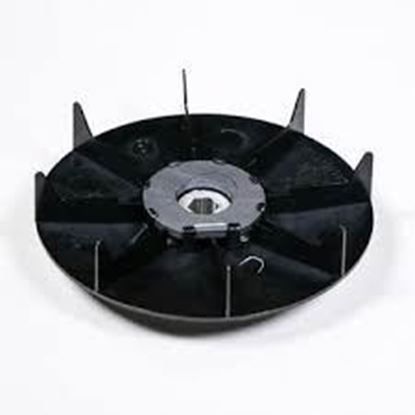

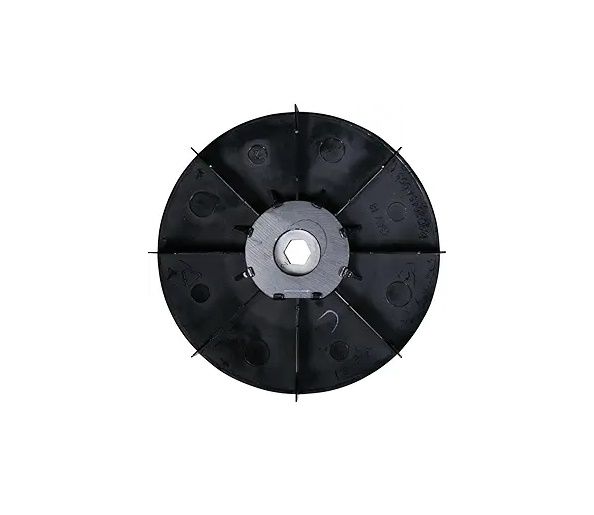

The General Electric WH01X10608 Washer Main Set Screw Pulley Assembly is a mechanical part of this product, and this part is used to transmit the motor power to the transmission of the washer. It is mostly used to hold and propel the pulley system to allow the belt to rotate the drum during wash and spin cycles. The assembly will be mounted on the motor or drive shaft and has an attachment with the belt and pulleys. It supports the efficient transfer of power within the system to maintain a stable rotation and ensures reliability during use.
Step 1: To begin, your washing machine should be disconnected from the electrical outlet and the water supply valves should be shut.
Step 2: Subsequently, the access panel should be removed and the required tools such as a Phillips screwdriver, hex wrench set, pliers, and a pocket knife should be gathered.
Step 3: With the Phillips screwdriver, the screws that secure the drum and tub assembly should be detached.
Step 4: Now the motor pulley should be extracted from the back of the washer and the GE Set Screw Pulley Motor Assembly should be located.
Step 5: Gently the set screw that secures the GE Set Screw Pulley Motor Assembly should be unscrewed using a hex wrench.
Step 6: The faulty motor assembly should be removed and set aside.
Step 7: The new WH01X10608 GE Set Screw Pulley Motor Assembly should be obtained and placed into position.
Step 8: Next, it should be tightened with the set screw, ensuring that the threads are aligned correctly.
Step 9: The motor pulley should be reinserted into the designated area at the rear of the washer.
Step 10: The screws should be replaced to secure the drum and tub assembly and the access panel should be reattached.
Step 11: The water supply valves should be opened again and finally the power supply to your washing machine should be turned on.
Please note that these instructions serve as general guidance and should always be utilized alongside the manufacturer's manual, if available.
