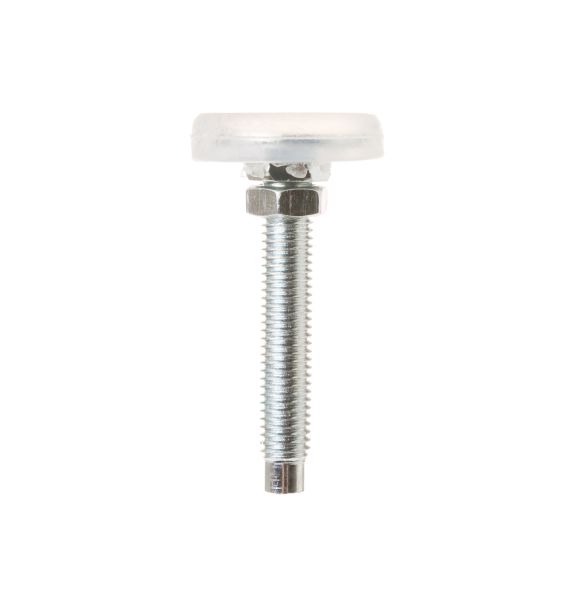

The General Electric WH01X10594 Washer Leg Leveling is an adjustable aid that can be fitted on the bottom of the appliance to attain the right level and balance. It has a screwed-in or screwed-out position on the underside of the appliance to fix wavy floors and limit the amount of vibration during the operation of the machine. After being established, it holds the cabinet in place, allowing the internal components of the cabinet to move freely. This allows for maintaining constant contact with the floor and holding the washer in place.
What maintenance is required for the General Electric WH01X10594 Leg Leveling?
Regularly inspect the washer legs for stability and ensure they remain properly tightened. Clean around the base to prevent debris buildup. Adjust as needed to maintain even leveling, which prevents excessive vibration and ensures safe operation.
What are common issues with the General Electric WH01X10594 Leg Leveling?
Legs becoming loose or unstable over time.
Uneven leveling causing washer vibration or rocking.
Difficulty adjusting legs on certain floor surfaces.
Noisy operation due to imbalance.
Installation Steps
Step1: Unplug washer and ensure water supply is turned off for safety before starting.
Step2: Tilt washer slightly with assistance to access the damaged or missing leveling leg underneath.
Step3: Rotate and remove the old leveling leg from its threaded base if still attached.
Step4: Screw in the new leveling leg securely into the mounting socket until properly seated.
Step5: Lower washer, adjust all legs for stability, and test balance by running a short spin cycle.
