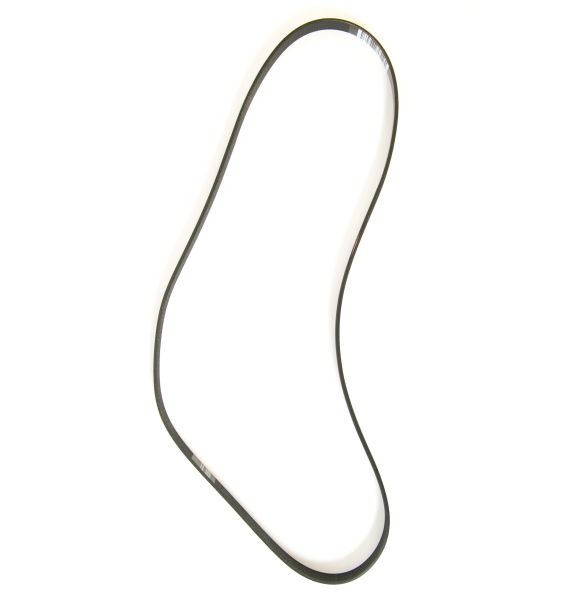

General Electric WH01X10302 Washer Drive Belt

Special Price $10.48 Regular Price $24.47
In stock
Available Quantity:   73
SKU
WH01X10302

Product Description

BELT - 6 RIB
Manufacturer
✓ This Product Replaces: WH01X10353
https://www.hnkparts.com/media/catalog/product/w/h/wh01x10302_general-electric_hnkparts.png

This Part Fits the Following Models (509)

GE GHWP1000M2WW Washer GE GIWN3000M0WW Washer GE GIWP1000M0WW Washer GE GIWP2000M0WW Washer GE GJRE5500K0WW Washer GE GJRE5500K3WW Washer GE GJRR4170H0WW Washer GE GJRR4170H1WW Washer GE GMAN5650D0WW Washer GE GMAN5650D1WW Washer GE WNCK2050H1WC Washer GE WNCK2050H2WC Washer GE GJRE5500K2WW Washer GE GMAN2800D0WS Washer GE GMAN2800D2WS Washer
Showing 1-15 of 509
Manufacturer Name: GENERAL ELECTRIC
Product Number: WH01X10302
OEM Part Number: WH01X10302
Product Description: Belt - 6 Rib

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:General Electric WH01X10302 Washer Drive Belt
Your Rating
Customer Questions
No Questions

Installation Steps

Step 1: The GE washer's power cord is disconnected from the electrical outlet.

Step 2: The rear side of the washer is reached by tilting it forward and positioning a sturdy board or similar support while work is done (ideally with two individuals). The back panel is detached.

Step 3: The large bolt that secures the motor bracket is loosened utilizing an adjustable wrench.

Step 4: The motor along with the drive belts is gently lowered from the bracket, with their original positions being observed.

Step 5: The old drive belt is removed from the pulley.

Step 6: The new drive belt is installed onto the pulley, with proper centering being ensured.

Step 7: The motor and the drive belts are lifted back into the bracket and fastened with the large bolt.

Step 8: The washer's back panel is reattached and cautiously returned to its vertical position.

Step 9: The power cord is reconnected to the outlet and the washer is tested to verify the new drive belt operates correctly.

Please remember, these instructions are served as general guidance and should always be followed alongside the manufacturer's manual, if accessible.
