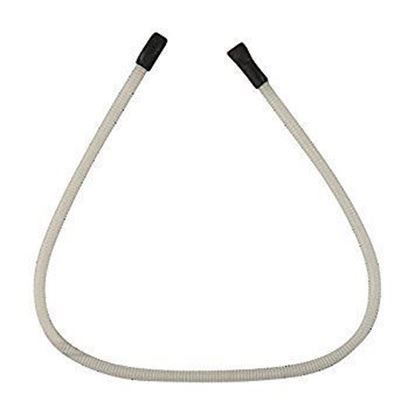

General Electric WD24X10062 Dishwasher Drain Tube Assembly

$17.72
In stock
Available Quantity:   225
SKU
WD24X10062

Product Description

DRAIN TUBE ASM
Manufacturer
✓ This Product Replaces: WD24X24650
https://www.hnkparts.com/media/catalog/product/w/d/wd24x10062_general-electric_hnkparts.jpg

This Part Fits the Following Models (450)

GE GDF570SGD0BB Dishwasher GE GDF570SSJ4SS Dishwasher GE GDF570SSJ5SS Dishwasher GE GDF610PGJ0BB Dishwasher GE GDF610PGJ0WW Dishwasher GE GDF610PGJ2BB Dishwasher GE GDF610PGJ2WW Dishwasher GE GDF610PGJ4BB Dishwasher GE GDF610PGJ4WW Dishwasher GE GDF610PGJ5BB Dishwasher GE GDF610PGJ5WW Dishwasher GE CDT835SSJ2SS Dishwasher GE CDT835SSJ4SS Dishwasher GE CDT835SSJ5SS Dishwasher GE CDT836P2M4S1 Dishwasher
Showing 1-15 of 450
Manufacturer Name: GENERAL ELECTRIC
Product Number: WD24X10062
OEM Part Number: WD24X10062
Product Description: Drain Tube Asm

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:General Electric WD24X10062 Dishwasher Drain Tube Assembly
Your Rating
Customer Questions
No Questions

Installation Steps

Step 1: Prior to commencing, it should be verified that the required tools and the correct replacement component, a WD24X10062 GE Dishwasher Drain Tube Assembly, are possessed.

Step 2: The power supply to the dishwasher should be disconnected before proceeding.

Step 3: The dishwasher drain tube assembly that requires replacement should be identified. Typically, it is positioned at the lower section of the dishwasher.

Step 4: The inlet and outlet hoses should be detached from the existing drain tube assembly.

Step 5: The old tube assembly should be extracted by loosening it from the mounting bracket.

Step 6: The new tube assembly should be installed, ensuring that the inlet and outlet hoses align correctly with their respective ports.

Step 7: The new tube should be firmly secured using the mounting bracket.

Step 8: The dishwasher should be reconnected to the power supply and the functionality of the new tube assembly should be verified to confirm proper operation.

Please remember, these guidelines serve as general advice and should always be utilized alongside the manufacturer's manual, if accessible.
