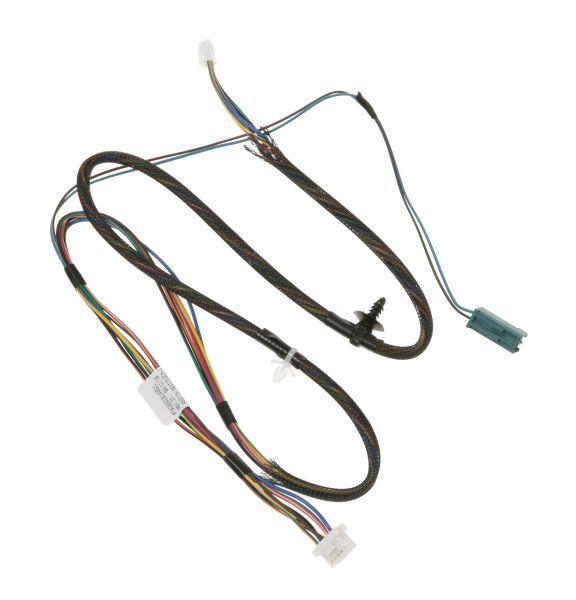

The General Electric WD21X22916 Dishwasher Door Wire Harness Assembly is an appliance electrical connection component designed to link the door-mounted controls and internal circuits within the system. It supports organized signal and power transmission between connected dishwasher components which can maintain coordinated operation during wash cycles. The harness is routed through the door assembly to maintain proper wire positioning and stable electrical connectivity through door movement. Its wire layout and connector configuration allow accurate installation within the designated routing channels. It contributes to consistent communication between electrical components and steady dishwasher performance during regular operation.
Step 1: The screws located at the top of the control panel should be taken out, utilizing a Phillips head screwdriver. The control panel should be removed from the dishwasher body and set aside.
Step 2: The screws that hold the current harness in position should be detached. The harness should be gently pulled from the appliance, paying attention to how it is connected.
Step 3: The new harness should be grabbed and the wires should be linked in the same configuration as they were attached to the previous harness. The harness should be fastened in its new location using the screws from the old harness.
Step 4: The ends of the harness should be threaded through the gap in the control panel, then the control panel should be carefully repositioned back into its original spot. The control panel should be secured with the screws that were previously removed.
Step 5: The door should be reconnected to the dishwasher's body, confirming that the wires are securely connected. Finally, power should be restored and the dishwasher should be tested to verify that everything is functioning as intended.
It is important to note that these instructions serve as general guidance and should always be referred to alongside the manufacturer's manual, if available.
