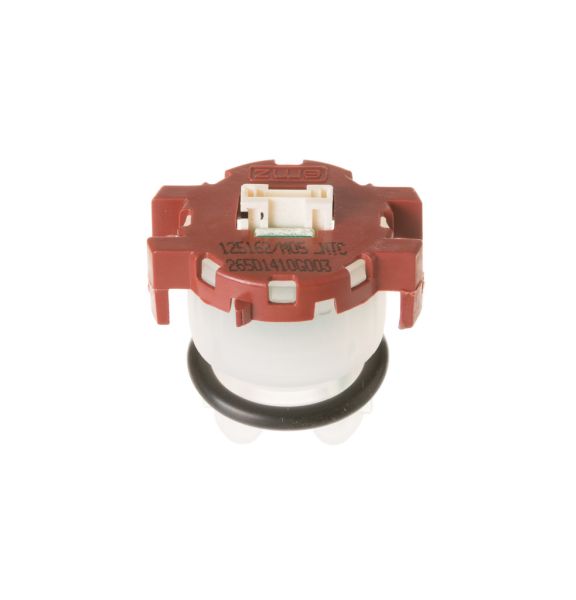

General Electric WD21X22830 Dishwasher Turbidity Sensor Assembly

Special Price $19.52 Regular Price $29.24
In stock
Available Quantity:   172
SKU
WD21X22830

Product Description

The General Electric WD21X22830 Dishwasher Turbidity Sensor Assembly is used to measure the clarity of the wash water during the operation. This component detects the amount of food particles, and debris present in the water and sends corresponding information to the dishwasher control system. of these as part of the wash cycle system, allowing the appliance to monitor water conditions throughout the cleaning process. The turbidity sensor assembly contributes to the operation of the dishwasher by providing water-quality data that is used by the control system during various stages of the wash cycle.
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/d/wd21x22830_general-electric_hnkparts.png

This Part Fits the Following Models (208)

GE GDF630PGM1WW Dishwasher GE GDF630PGM4BB Dishwasher GE GDF630PGM4WW Dishwasher GE GDF630PGM5BB Dishwasher GE GDF630PGM5WW Dishwasher GE GDF630PMM4ES Dishwasher GE GDF630PMM1ES Dishwasher GE GDF630PGM6WW Dishwasher GE GDF630PGM1BB Dishwasher GE GDF630PFM1DS Dishwasher GE GDF630PFM4DS Dishwasher GE GDF610PGJ6WW Dishwasher GE GDF610PGJ6BB Dishwasher GE GDF610PGJ5WW Dishwasher GE GDF610PGJ5BB Dishwasher
Showing 1-15 of 208
Manufacturer Name: GENERAL ELECTRIC
Product Number: WD21X22830
OEM Part Number: WD21X22830
Product Description: Dishwasher Sensor

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:General Electric WD21X22830 Dishwasher Turbidity Sensor Assembly
Your Rating
Customer Questions
No Questions

Installation Steps

Step 1: The dishwasher is disconnected from the electrical outlet and the water supply is shut off.

Step 2: The dishwasher door is opened and the bottom rack is extracted.

Step 3: A Phillips head screwdriver is employed to take out four screws located on the front underside panel of the dishwasher.

Step 4: The panel is gently elevated to reach the dishwasher's interior.

Step 5: The turbidity sensor situated near the bottom right corner of the dishwasher is identified.

Step 6: A pair of needle nose pliers is utilized to detach the electrical wires linked to the turbidity sensor.

Step 7: The two screws securing the turbidity sensor are taken out.

Step 8: The old turbidity sensor is extracted from the dishwasher and disposed of.

Step 9: The new turbidity sensor is placed into the same location as the previous one. It is fastened with the two screws.

Step 10: The electrical wires are reconnected to the new turbidity sensor.

Step 11: The underside panel is reinstalled using the four screws.

Step 12: The bottom rack is slid back into the dishwasher.

Step 13: The dishwasher is reconnected to the power source and the water supply is restored.

Please note that these instructions are served as general guidance and should always be followed alongside the manufacturer's manual, if one is available.
