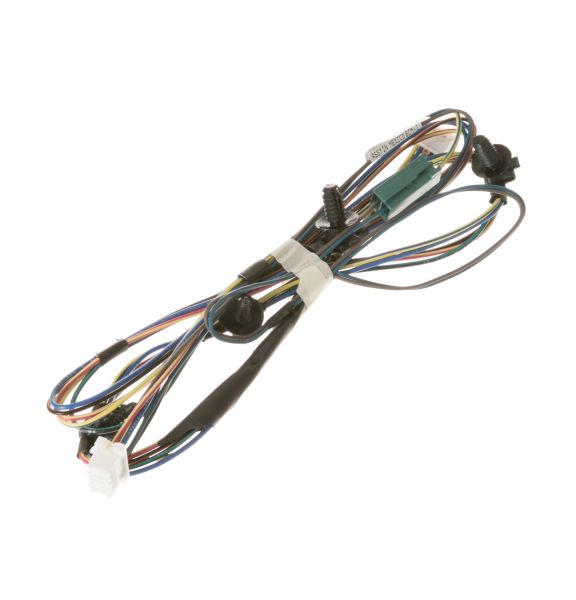

main product photo

General Electric WD21X10545 Dishwasher Harness Assembly Door

Be the first to review this product
Special Price $26.27 Regular Price $43.95
In stock
Available Quantity:   58
SKU
WD21X10545

Product Description

The General Electric WD21X10545 Dishwasher Harness Assembly Door functions as a connector between door electrical components and dishwasher control systems. This component enables power and signal communication between the door and internal systems to perform door-locking functions along with cycle initiation and control board communication. The harness consists of durable materials that guarantee operational reliability by stopping interruptions when in use. The GE dishwasher harness assembly finds its placement inside the door to enable electrical feature operation. Every wash cycle depends on this component to maintain both performance and safety standards in the dishwasher.
Add to Wish List
Dishwasher Parts, Wire Harnesses,
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/d/wd21x10545_general-electric_hnkparts.png

This Part Fits the Following Models (27)

Showing 1-15 of 27
Manufacturer Name: GENERAL ELECTRIC
Product Number: WD21X10545
OEM Part Number: WD21X10545
Product Description: Harness Asm Door

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:General Electric WD21X10545 Dishwasher Harness Assembly Door
Your Rating
FAQS
Customer Questions
What maintenance is required for the General Electric WD21X10545 Harness Assembly Door?

Regularly inspect the dishwasher harness for signs of wear, fraying, or loose connections. Ensure the door wiring is properly aligned and not pinched during operation. Keep the area dry to prevent electrical issues. Disconnect power before handling to ensure safety.

What are common issues with the General Electric WD21X10545 Harness Assembly Door?

  • Broken or frayed wires.
  • Loose or disconnected wiring connections.
  • Intermittent power to door components.
  • Dishwasher not starting due to wiring faults.
  • Faulty communication between control board and door parts.

Installation Steps

Step1: Disconnect power to the dishwasher at the circuit breaker before servicing.

Step2: Open the dishwasher door and remove the screws securing the inner door panel.

Step3: Separate the door panels to access the door harness assembly.

Step4: Label all wire connections, then disconnect the old harness.

Step5: Route and connect the new harness assembly exactly as the original, securing any clips or retainers.

Step6: Reassemble the door panels, restore power, and test the controls and door functions to verify proper operation.
