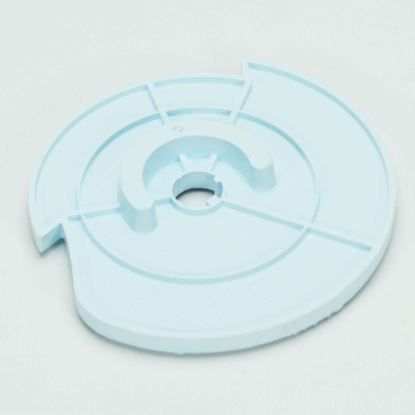

General Electric WD16X10012 Dishwasher Cam Timer

Special Price $24.33 Regular Price $24.72
In stock
Available Quantity:   64
SKU
WD16X10012

Product Description

The General Electric WD16X10012 Dishwasher Cam Timer controls mechanical sequencing using preset positions that switch the various wash, rinse, and drain stages. The switches are internal and open or close as the cam moves forward and direct the dishwasher into the programmed sequence. It is attached to the wiring system of the appliance, and it is located behind the control panel. Its functioning ensures that every stage is performed in the proper order of time, and it makes pumps, valves, and heating elements interact.
Dishwasher Parts, Timers,
Manufacturer

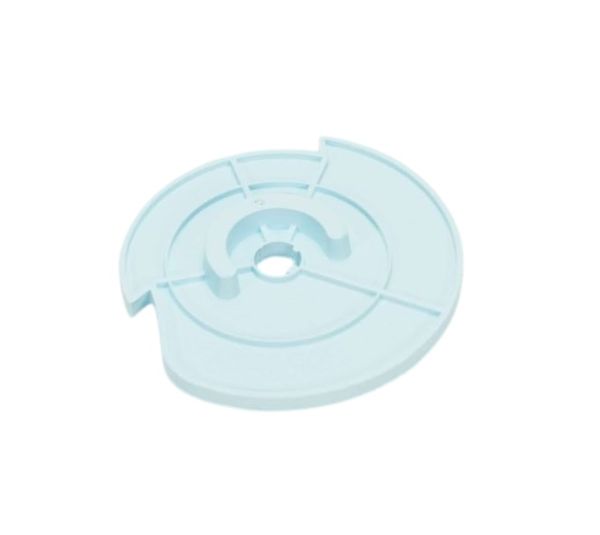

https://www.hnkparts.com/media/catalog/product/w/d/wd16x10012-33197.jpg

This Part Fits the Following Models (258)

GE GSD3300K55WW Dishwasher GE GSD3300K00WW Dishwasher GE GSD3300K00CC Dishwasher GE GSD3300K55BB Dishwasher GE GSD3300K55CC Dishwasher GE GSM2200V00BB Dishwasher GE GSM2200V00WW Dishwasher GE GSD3361K55SS Dishwasher GE GSD3360K01SS Dishwasher GE GSD3360K55SS Dishwasher GE GSD3360R20SS Dishwasher GE GSD3360V00SS Dishwasher GE GSD3361K00SS Dishwasher GE GSD3361K01SS Dishwasher GE GSD3361J50SS Dishwasher
Showing 1-15 of 258
Manufacturer Name: GENERAL ELECTRIC
Product Number: WD16X10012
OEM Part Number: WD16X10012
Product Description: Cam Timer

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:General Electric WD16X10012 Dishwasher Cam Timer
Your Rating
Customer Questions
What maintenance is required for the General Electric WD16X10012 Cam Timer?

Regularly inspect the dishwasher cam timer for wear or buildup. Ensure connections are secure and free of moisture. Gently clean contacts to prevent electrical issues. Proper maintenance helps avoid malfunctions and ensures smooth cycle operation.

What are common issues with the General Electric WD16X10012 Cam Timer?

  • Dishwasher cycles not advancing properly.
  • Timer skipping or repeating cycles.
  • Electrical contacts corroding or sticking.
  • Inconsistent start or stop of wash programs.

Installation Steps

Step1: Disconnect power at breaker and shut off water supply; open dishwasher access panel.

Step2: Locate existing cam timer assembly; note or label wiring connections for reference.

Step3: Carefully disconnect wire harnesses, unscrew mounting bracket, and remove old timer unit.

Step4: Install new cam timer in same position, reconnect wires according to labels, and secure screws tightly.

Step5: Reassemble panel, restore power and water, then run a short cycle to verify operation.
