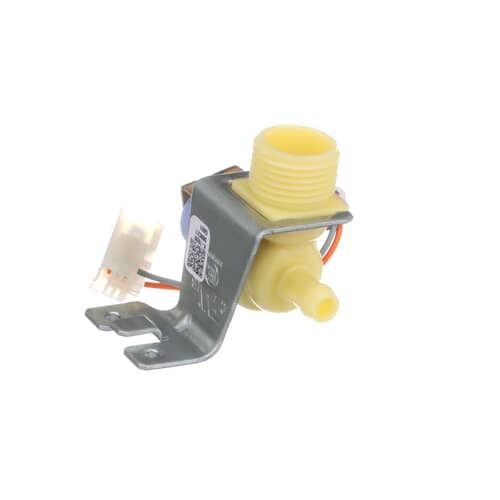

The General Electric WD15X26140 Dishwasher Water Valve & Harness Service Assembly regulates water intake based on the cycle settings, preventing overflow or insufficient water supply. This component functions by opening and closing the valve at precise times, allowing the right amount of water to enter and drain efficiently. The harness ensures secure electrical connections, optimizing performance. Designed for durability, it helps maintain consistent washing results while reducing the risk of leaks or water pressure issues. Replacing a faulty valve with this assembly enhances efficiency, extends the appliance’s lifespan, and supports reliable cleaning performance with minimal maintenance needs.
Step 1: The appliance is disconnected from the electrical source and the water supply is shut off.
Step 2: The rear panel of the appliance is detached and the two-wire connector is unplugged from the current water valve.
Step 3: The bracket that secures the water valve is taken off.
Step 4: The new GE WD15X26140 Water Valve and Harness are placed.
Step 5: The two-wire connector is plugged into the new water valve.
Step 6: The bracket is reattached and it is fastened with the screws.
Step 7: The water supply is activated and power to the appliance is re-established.
Step 8: The functionality of the new water valve and harness is verified by initiating a cycle.
It is essential to remember that these instructions are served as general guidance and should always be referenced alongside the manufacturer's manual, if one is accessible.
