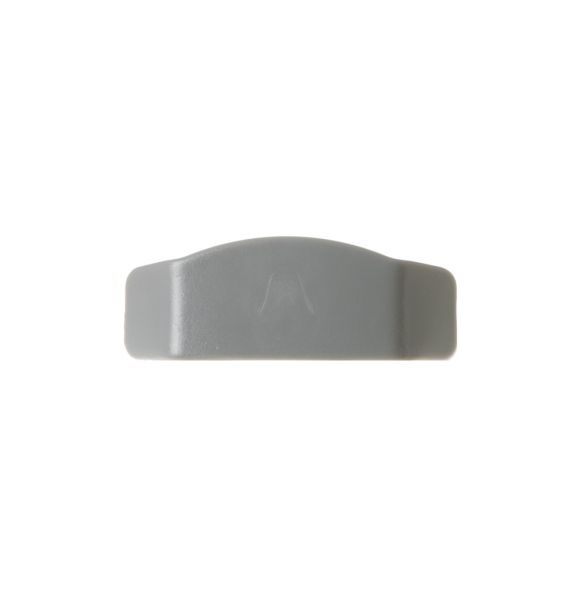

The General Electric WD12X23617 Dishwasher Upper Rack Rail Cap secures the exposed end of the upper rack rail to maintain smooth rack movement and protect the rail structure during operation. It is installed at the termination point of the upper rack support track, where it interfaces with the rail end and cabinet sidewall through a snap-fit or press-fit attachment. The cap configuration maintains proper rail alignment while preventing direct contact between moving rack components and the cabinet interior. It supports dishwashing cycles through controlled upper rack control and movement within the wash chamber.
Step 1: The GE dishwasher is disconnected from the power source and the appliance's electricity is deactivated.
Step 2: The door of the dishwasher is opened and all dishes are taken out to allow for improved access to the upper rack.
Step 3: The upper rack is removed from the dishwasher.
Step 4: The old cap - Upper Rack Rail End Cap (GE WD12X23617) is examined and it is confirmed that it requires replacement before proceeding.
Step 5: The old end cap is extracted with a Phillips head screwdriver. The screws are retained if they are still usable.
Step 6: The new cap is positioned into the opening left by the removed one. The new cap is fastened using the existing screws or ones that are suitably sized.
Step 7: The upper rack is reinserted into the dishwasher and it is ensured that it is securely positioned.
Step 8: The appliance's power is reactivated and it is reconnected to the outlet.
Step 9: A cycle is initiated in the dishwasher to verify that everything functions correctly.
Be aware that these instructions are served as general guidance and should always be used alongside the manufacturer's manual, if accessible.
