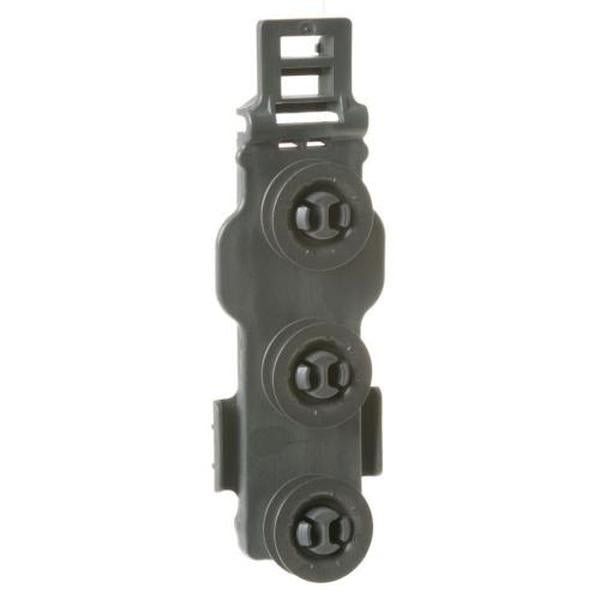

General Electric WD12X22801 Dishwasher 3-Wheels Rack Bracket

Special Price $16.64 Regular Price $22.30
In stock
Available Quantity:   54
SKU
WD12X22801

Product Description

RACK BRACKET - 3 WHEELS
Manufacturer
✓ This Product Replaces: WD12X10448
https://www.hnkparts.com/media/catalog/product/w/d/wd12x22801_general-electric_hnkparts.png

This Part Fits the Following Models (175)

GE GDF570SGD0BB Dishwasher GE GDF570SSJ4SS Dishwasher GE GDF570SSJ5SS Dishwasher GE GDF610PGJ0BB Dishwasher GE GDF610PGJ0WW Dishwasher GE GDF610PGJ2BB Dishwasher GE GDF610PGJ2WW Dishwasher GE GDF610PGJ4BB Dishwasher GE GDF610PGJ4WW Dishwasher GE GDF610PGJ5BB Dishwasher GE GDF610PGJ5WW Dishwasher GE GDF610PGJ6BB Dishwasher GE GDF610PGJ6WW Dishwasher GE GDF610PMJ0ES Dishwasher GE GDF630PFM1DS Dishwasher
Showing 1-15 of 175
Manufacturer Name: GENERAL ELECTRIC
Product Number: WD12X22801
OEM Part Number: WD12X22801
Product Description: Rack Bracket - 3 Wheels

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:General Electric WD12X22801 Dishwasher 3-Wheels Rack Bracket
Your Rating
Customer Questions
No Questions

Installation Steps

Step 1: The appliance should be disconnected from the electrical outlet and the racks should be taken out from the unit.

Step 2: A nut driver should be employed to detach the screws that secure the defective wheel or the damaged rack bracket to the base of the appliance.

Step 3: The new WD12X22801 rack bracket should be positioned by aligning its holes with those in the appliance's bottom. The wheel should be ensured properly seated.

Step 4: The screws should be replaced to fasten the wheel securely.

Step 5: The wheel axle should be connected and adjusted to fit snugly between the rack bracket's side rails. A Phillips screwdriver should be used to secure the wheel axle.

Step 6: The wheel should be verified to operate smoothly and consistently before the racks are reinstalled and the appliance is reconnected to power.

Well done! Your GE WD12X22801 is now prepared for use following the successful replacement of the rack bracket.

Please remember that these instructions should be served as general guidance and should always be referenced alongside the manufacturer's manual, if available.
