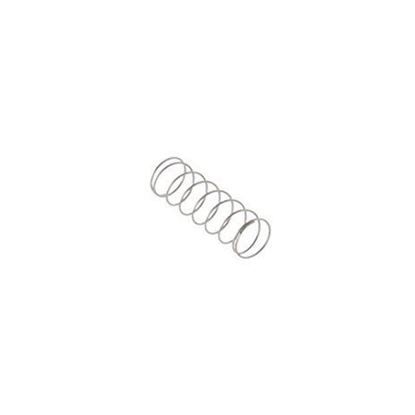

General Electric WD03X10026 Dishwasher Plunger Spring

Special Price $9.72 Regular Price $9.77
In stock
Available Quantity:   24
SKU
WD03X10026

Product Description

The General Electric WD03X10026 Dishwasher Plunger Spring is enhanced into latch or actuator mechanisms to support controlled movement of associated parts. Placed around or alongside the plunger assembly, it applies force that assists return the plunger to its intended position after activation. During operation, the spring compresses and expands as the mechanism cycles, contributing to consistent movement and proper arrangement of connected components. Operating within the dishwashers mechanical control system, it support maintain operation of the assembly. Proper spring tension is for maintaining consistent mechanical performance operations.
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/d/wd03x10026_general-electric_hnkparts.jpg

This Part Fits the Following Models (807)

GE GSD6960N20SS Dishwasher GE GSD6960N15SS Dishwasher GE GSD6960N10SS Dishwasher GE GSD6960J15SS Dishwasher GE GSD6960N00SS Dishwasher GE GSD6960J10SS Dishwasher GE GSD6900N20CC Dishwasher GE GSD6900N20WW Dishwasher GE GSD6900N20BB Dishwasher GE GSD6900N15WW Dishwasher GE GSD6900N15BB Dishwasher GE GSD6900N15CC Dishwasher GE GSD6900N10WW Dishwasher GE GSD6900N10CC Dishwasher GE GSD6900N10BB Dishwasher
Showing 1-15 of 807
Manufacturer Name: GENERAL ELECTRIC
Product Number: WD03X10026
OEM Part Number: WD03X10026
Product Description: Spring Plunger

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:General Electric WD03X10026 Dishwasher Plunger Spring
Your Rating
Customer Questions
What maintenance is required for the General Electric WD03X10026 Plunger Spring?

Regularly inspect the dishwasher plunger spring for signs of wear, corrosion, or loss of tension. Keep the surrounding area clean and free from debris to ensure smooth movement. Proper maintenance helps maintain dishwasher performance and prevents mechanical issues. Always disconnect power before handling internal components for safety.

What are common issues with the General Electric WD03X10026 Plunger Spring?

  • Loss of tension causing improper plunger movement.
  • Spring breakage leading to mechanical failure.
  • Corrosion or rust affecting performance.
  • Misalignment resulting in inconsistent operation.
  • Reduced responsiveness of the dishwasher mechanism.

Installation Steps

Step1: Disconnect dishwasher from power supply and shut off water supply for safety.

Step2: Open dishwasher door, remove lower rack, and access latch and plunger area.

Step3: Carefully remove old plunger spring using pliers if needed or gently unhook it.

Step4: Position new plunger spring into correct latch assembly, ensuring proper alignment.

Step5: Reassemble all components, restore water and power supply, then test door latch operation.
