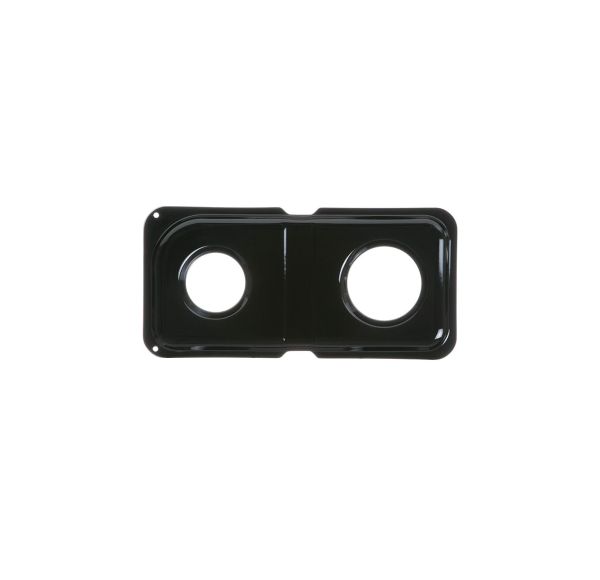

General Electric WB34K10009 Range Right Hand Side Double Drip Pan-Black

Special Price $34.52 Regular Price $49.95
In stock
Available Quantity:   56
SKU
WB34K10009

Product Description

The General Electric WB34K10009 Range Right Hand Side Double Drip Pan-Black collects spills, grease, and overflows beneath the right-side burner assembly during operation. It is installed directly under the burner grates where it fits into the cooktop frame and aligns with both the small and burner cutouts for proper positioning within the surface layout. The pan is configured with a molded coated structure that interfaces with the ranges burner support system to contain debris and heat exposure. Its operational supports clean burner operation and assists with the containment of cooking residues.
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/b/wb34k10009-44188.jpg

This Part Fits the Following Models (517)

GE JGBP32BEL2BB Gas Range GE JGBP32BEL3BB Gas Range GE JGBP32CEF1CC Gas Range GE JGBP32BEL4BB Gas Range GE JGBP32BEL1BB Gas Range Hotpoint RGB790SEH6SA Range Hotpoint RGB790SEH5SA Range Hotpoint RGB790SEH7SA Range Hotpoint RGB790SEHASA Range Hotpoint RGB790SEH8SA Range Hotpoint RGB790SEHBSA Range Hotpoint RGB790SEH3SA Range Hotpoint RGB790SEH4SA Range Hotpoint RGB790SEH2SA Range Hotpoint RGB790SEH1SA Range
Showing 1-15 of 517
Manufacturer Name: General Electric
Product Number: WB34K10009
OEM Part Number: WB34K10009
Product Description: Rh Dbl Gas Drip Pan - Black

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:General Electric WB34K10009 Range Right Hand Side Double Drip Pan-Black
Your Rating
Customer Questions
No Questions

Installation Steps

Step 1: Your appliance should be disconnected from the power source and the gas supply should be disabled.

Step 2: The two burner grates should be elevated and the drip pans should be taken out.

Step 3: The new WB34K10009 GE Double Burner Drip Pan, Black should be removed from its packaging, and it should be positioned at the center of the burners.

Step 4: The four notches located on the top of the drip pan should be aligned with the matching four posts on the burner.

Step 5: Downward pressure should be applied on the drip pan to confirm it is securely positioned.

Step 6: The burner grates should be reinstalled and the appliance should be reconnected to the power supply.

Step 7: The gas supply should be reactivated and the burner’s functionality should be verified.

Step 8: If everything is functioning correctly, the WB34K10009 GE Double Burner Drip Pan, Black has been successfully installed!

Please remember that these instructions are served as general guidance and should always complement the manufacturer’s manual, if one is available.
