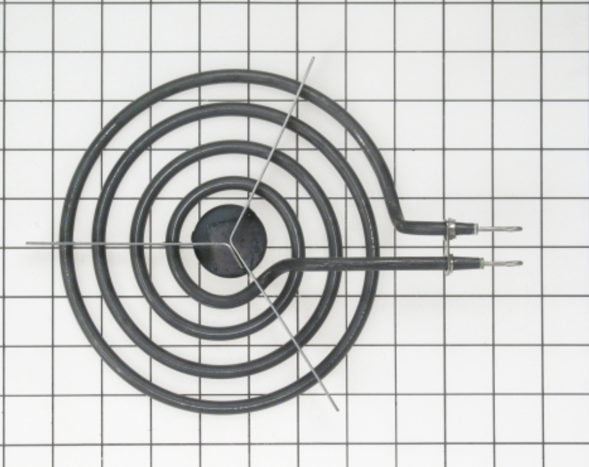

main product photo

GE WB30X253 Range 8" Surface Unit Black Metal 4T 2100W

Be the first to review this product
Special Price $45.64 Regular Price $62.15
In stock
Available Quantity:   421
SKU
WB30X253

Product Description

The General Electric WB30X253 Range 8" Surface Unit Black Metal 4T 2100W produces heat to cook on the electric unit, by transforming electrical energy into radiant heat with its coil design. It is operated by passing current through the coil, which heats up enabling cookware sitting on top to obtain uniform and regulated heat to carry out different cooking activities. This assists in the uniform distribution of temperature and consistent cooking results. It sits on the cooktop surface and is connected by plug-in terminals to the internal electrical system, which provides secure placement and efficient operation.
Add to Wish List
Stove & Oven Parts, Heating Elements,
Manufacturer
✓ This Product Replaces: WB30X5060, WB30X5095, 325503, 325503, WB30X0253

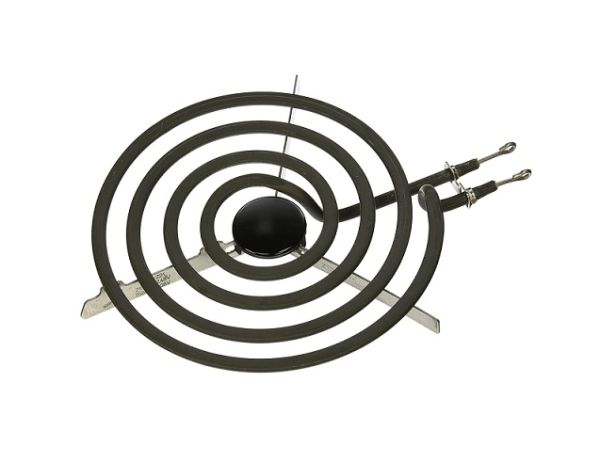

https://www.hnkparts.com/media/catalog/product/w/b/wb30x253-84305.jpg

This Part Fits the Following Models (155)

GE JBS23BY1WH Electric Range GE JBS23BY1AD Electric Range GE JBS04V2WH Electric Range GE JBS05Y1WH Electric Range GE JBS05Y1AD Electric Range GE JBS05Y2AD Electric Range GE JBS05Y2WH Electric Range GE JBS04V2AD Electric Range GE JBS04V1WH Electric Range GE JBS04V1AD Electric Range GE JBS02LY1WH Electric Range GE JBS02LY2WH Electric Range GE JBS04P1 Electric Freestanding Range GE JBP23 Electric Range GE JBP15GIV1WH Electric Range
Showing 1-15 of 155
Manufacturer Name: General Electric
Product Number: WB30X253
OEM Part Number: WB30X253
Product Description: 8 Unit 4T 2100W Blk Medal"

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:GE WB30X253 Range 8" Surface Unit Black Metal 4T 2100W
Your Rating
FAQS
Customer Questions
No Questions

Installation Steps

Step 1: The power supply to the GE range stove cook top should be cut off by either flipping the breaker or unplugging it from the outlet.

Step 2: After ensuring power is off, the burner surface unit element 8" 4T 2100W black medallion should be identified and the screws fastening it to the cook top should be taken out.

Step 3: Once the screws are extracted, the existing burner surface unit element should be gently slid out from its position on the cook top.

Step 4: Next, the new WB30X253 replacement burner surface unit element can be set in place.

Step 5: The wiring should be tucked back into the cook top, making certain that all wires are straightened and not visible before proceeding.

Step 6: The new burner surface unit element should be aligned over the slots and fastened with the screws that were previously removed.

Step 7: In conclusion, the cover plate should be reattached and the power to the GE range stove cook top should be restored.

Step 8: The burner should be verified to function correctly to confirm that the new replacement burner surface unit element is operational.

Adhering to these instructions will assist in achieving a safe and effective DIY repair of the GE WB30X253 burner surface unit element 8" 4T 2100W black medallion.

Please remember, these guidelines serve as general advice and should always be utilized alongside the manufacturer's manual, if accessible.
