main product photo

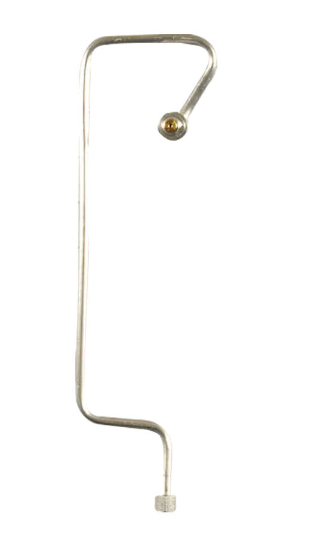

General Electric WB28X24762 Range Central Orifice Holder

Be the first to review this product
Special Price $20.46 Regular Price $27.43
In stock
Available Quantity:   16
SKU
WB28X24762

Product Description

The General Electric WB28X24762 Range Central Orifice Holder supports gas flow to the center burner assembly within the appliance system. It positions the gas orifice in alignment with the burner inlet, allowing controlled fuel delivery for ignition and flame distribution. The holder is installed beneath the cooktop surface at the center burner location where it interfaces with the gas supply line, burner assembly and mounting brackets through designated connection points. It allows for maintaining proper gas routing, stable burner alignment and consistent appliance operation during cooking and heating cycles.
Add to Wish List
Stove & Oven Parts, Gas Valves,
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/b/wb28x24762_general-electric_hnkparts.png

This Part Fits the Following Models (101)

GE JGBS66DEK1BB Gas Range Or Dual Fuel GE JGBS66DEK1WW Gas Range Or Dual Fuel GE JGBS66DEK2BB Gas Range Or Dual Fuel GE JGBS66DEK2WW Gas Range Or Dual Fuel GE JGBS66DEK3BB Gas Range Or Dual Fuel GE JGBS66DEK3WW Gas Range Or Dual Fuel GE JGBS66EEK1ES Gas Range Or Dual Fuel GE JGBS66EEK2ES Gas Range Or Dual Fuel GE JGBS66EEK3ES Gas Range Or Dual Fuel GE JGBS66FEK1DS Gas Range Or Dual Fuel GE JGBS66FEK2DS Gas Range Or Dual Fuel GE JGBS66REK1SS Gas Range Or Dual Fuel GE JGBS66REK2SS Gas Range Or Dual Fuel GE JGBS66REK3SS Gas Range Or Dual Fuel GE PGB911EEJ4ES Gas Range Or Dual Fuel
Showing 1-15 of 101
Manufacturer Name: GENERAL ELECTRIC
Product Number: WB28X24762
OEM Part Number: WB28X24762
Product Description: Central Orifice Holder

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:General Electric WB28X24762 Range Central Orifice Holder
Your Rating
FAQS
Customer Questions
No Questions

Installation Steps

Step 1: The power supply to your appliance should be deactivated. Your GE WB28X24762 oven may be connected to its own circuit breaker, or a general breaker for kitchen appliances that can be turned off.

Step 2: The central orifice holder should be identified, which is generally located at the rear of the oven. One gas line will be connected, along with several valve screws and a mounting bracket that keeps the orifice holder secured.

Step 3: The orifice holder should be extracted. This involves loosening the screws that secure the orifice holder. The orifice holder should be carefully taken out and placed aside.

Step 4: The new central orifice holder should be positioned. It should ensure that the orifice holder is aligned in the same manner as the original one. It should be fastened using the provided screws.

Step 5: The gas line should be reconnected. Caution should be exercised when handling the gas line and it should be verified that the connections are tight.

Step 6: The power to the appliance should be reactivated and the functionality of the new orifice holder should be verified by turning on the oven to confirm it operates correctly.

Step 7: You’re finished! The GE WB28X24762 Central Orifice Holder has been effectively replaced.

Please remember that these instructions serve as general guidance and should always be utilized alongside the manufacturer's manual, if one is available.
